add knockout text for PWR and DATA

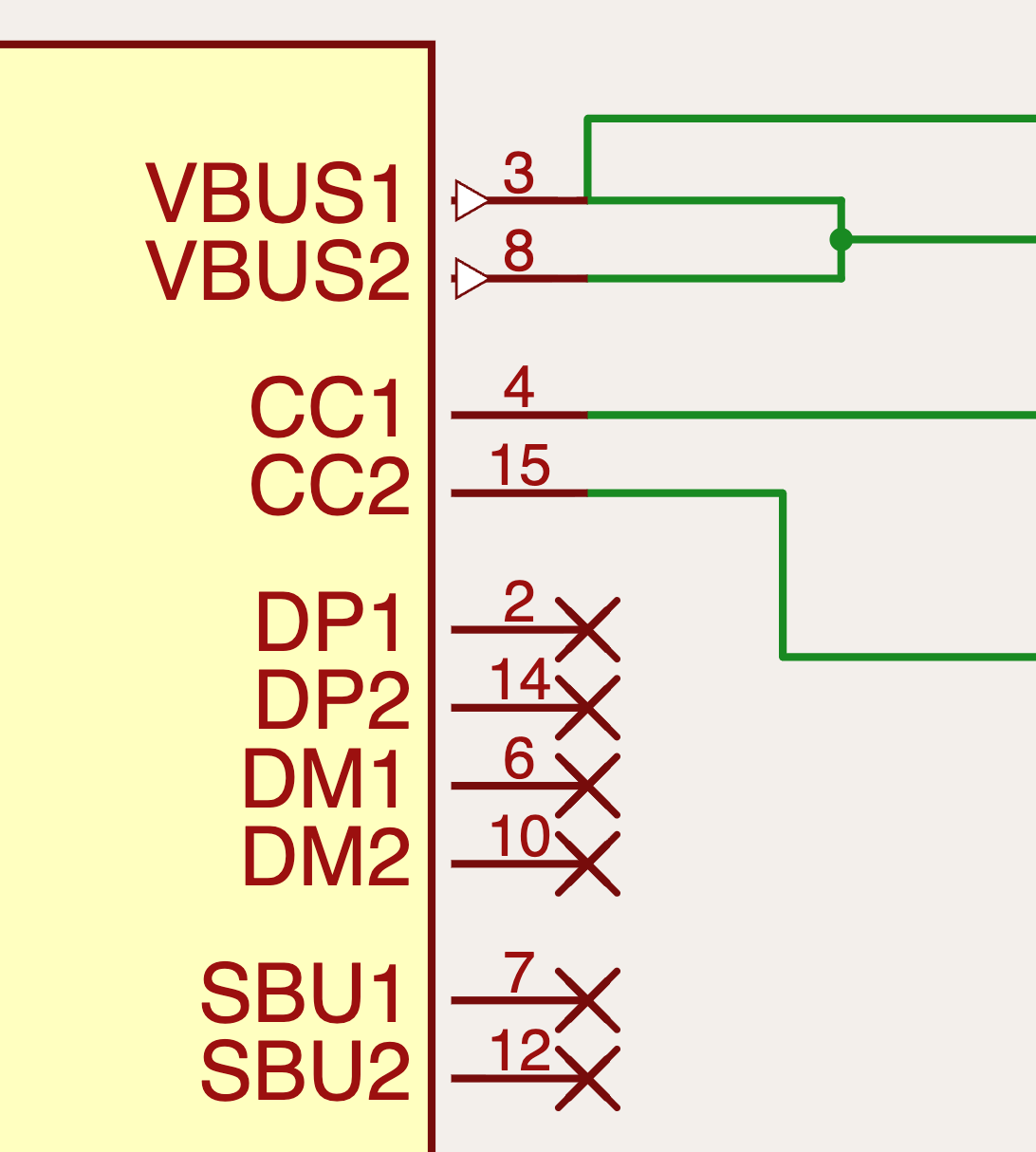

Even the schematic used for usbc is not standard

I don't think bulk capacitor is needed

you should do the assembly- i don't think the bolts will fit

<@756504518417711104> you should try to get the encoder with doNotPlace on the back, we may be adding those because they turn the steppers into servos and add a lot of value

this is the only way to make the two USB-Cs on the same side, so I think we need to replace the bolts with other ones

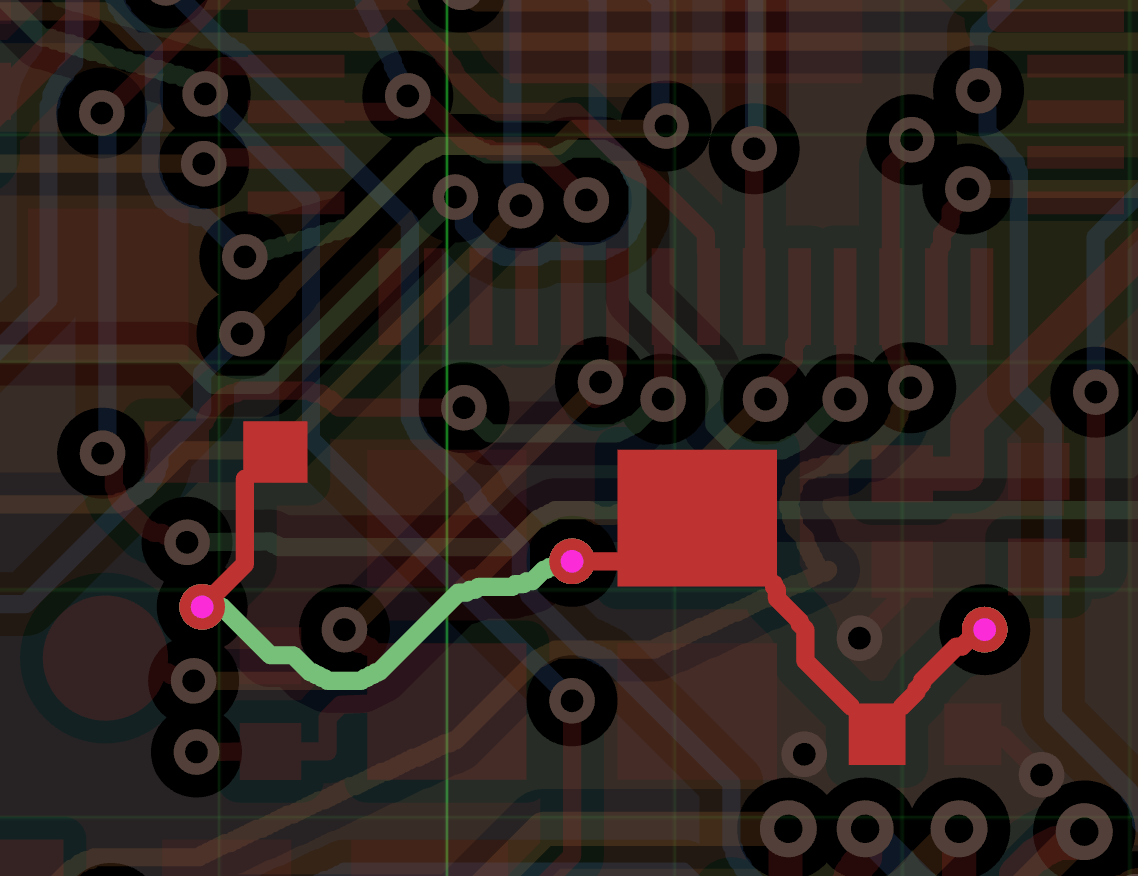

the crystal traces are really bad!

you can use upward usb-c if it is going to help spacing a lot

yeah it will helps alot

why does your board have 0 warnings and errors if the crystal is so bad

thats what Im trying to debug rn 🫠

this is one of the best schematics i've seen

I agree, I just tald Ai to make it professional lol

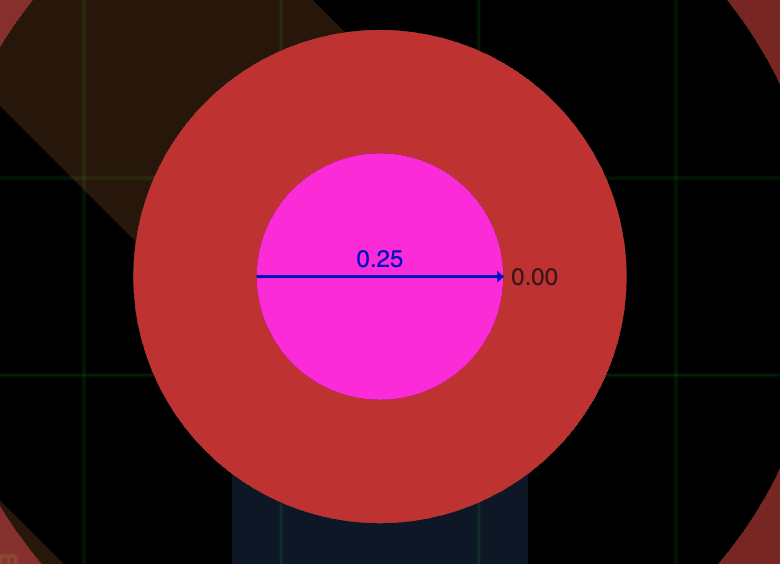

is this via size going to cost extra

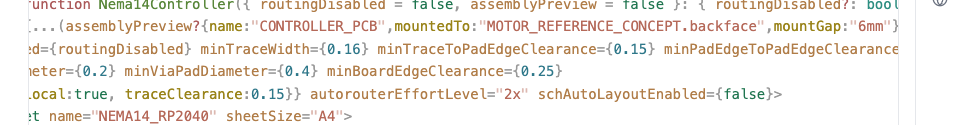

Can you check if these overriding values of clearance are more than the jlc tolerance capability?

Fixed via size, crystal trace, and using the correct bolts size. so I will do assemply but just check this <@809856037376491570> <@757706909351411845> https://tscircuit.com/AnasSarkiz/NEMA14_RP2040#3d

<@398467566588264449>

looks pretty good to me

schematic is decent

why is this happening? Everything looks strange here

<@809856037376491570> <@398467566588264449> could u take a look

lg

<@809856037376491570> Im gonna order it
