Arhan - While building a board with an edge con...

While building a board with an edge connector, I got reports that an SMT pad is violating copper to board edge clearance, even though the pad is intentionally placed at the board outline as an electrical contact. The checker reports 0.010mm clearance where 0.200mm is required, an

Started by ArhanAug 20, 20267 messages

Discussion

Last active 15 days ago · plain text
Arhanoriginal post

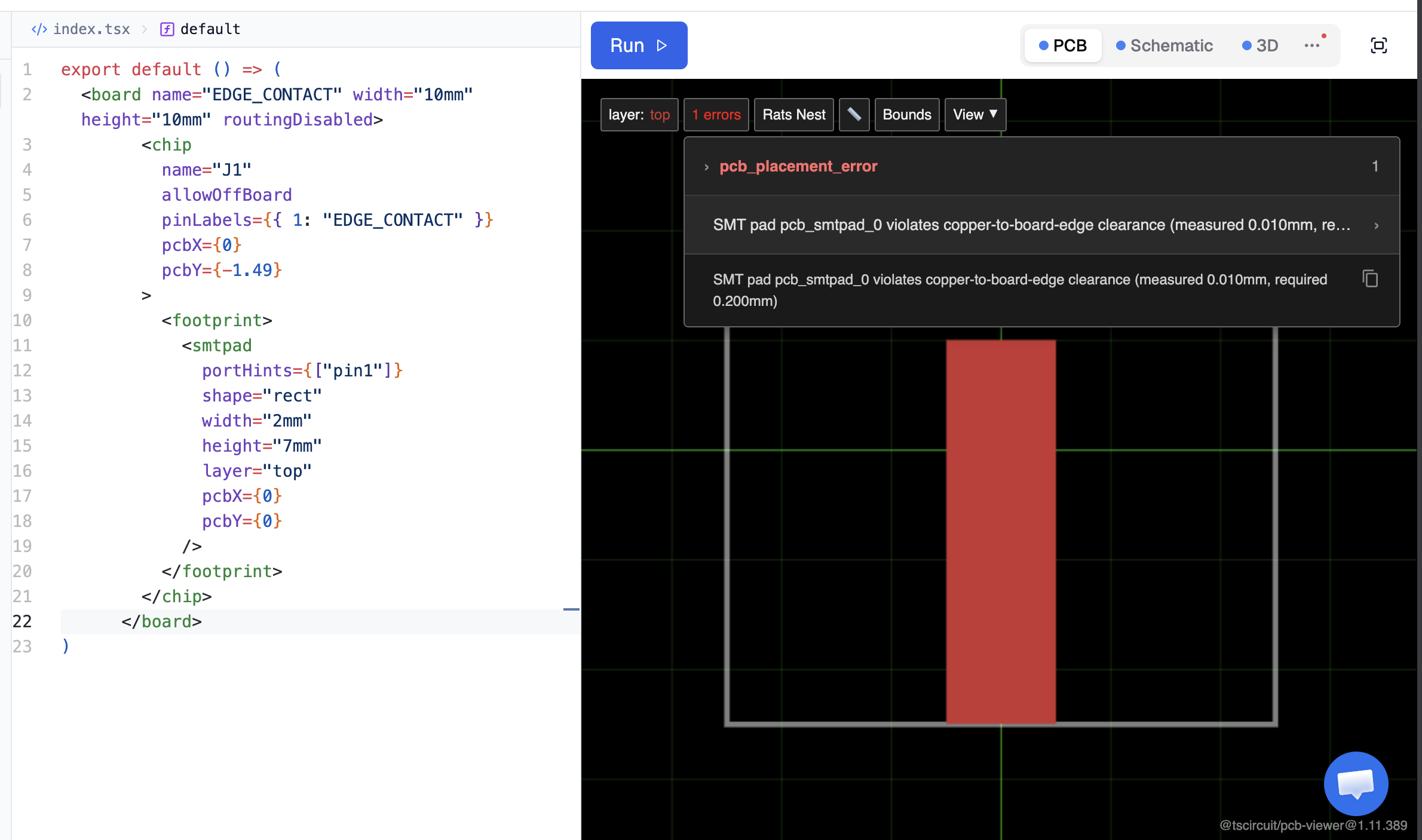

While building a board with an edge connector, I got reports that an SMT pad is violating copper-to-board-edge clearance, even though the pad is intentionally placed at the board outline as an electrical contact. The checker reports `0.010mm` clearance where `0.200mm` is required, and `allowOffBoard` does not change the result. Does this look like a valid issue that I should open a repro for? <@757706909351411845>
Abse
is this saved can you send the link for the repro
Arhan
https://github.com/tscircuit/checks/pull/228
Abse
do you have the repro in tscirucit.com ?
Arhan
No, I don’t have a `tscircuit.com` repro yet. Should I create a shareable web-editor repro as well?
Abse
<@1090901054385836045> tag me if you got a fix
Arhan
https://github.com/tscircuit/checks/pull/229 <@398467566588264449>
