Vivek Vijayan - Is this the right approach to u...
Is this the right approach to use exposedNets code sample
Started by Vivek VijayanJul 20, 202617 messages
← Back to community index
Discussion
Last active last month · plain textVivek Vijayanoriginal post
Is this the right approach to use `exposedNets`
```
export const SensorFrontEnd = () => {
return (
<subcircuit exposedNets={["VCC","GND", "SIG_OUT"]} name={name} showAsSchematicBox={showAsSchematicBox}>
<port name="VCC" direction="left" connectsTo={["R_p.pin1"]} />
<port name="GND" direction="left" connectsTo={["C_f.pin2"]} />
<port name="SIG_OUT" direction="right" connectsTo={["R_p.pin2"]} />
<resistor name="R_p" resistance="10k" footprint="0603" />
<capacitor name="C_f" capacitance="100nF" footprint="0603" />
<trace name="tr_internal_sig" from=".R_p.pin2" to=".C_f.pin1" />
</subcircuit>
)
}
export const SignalProcessor = () => {
return (
<subcircuit name={name} exposedNets={["VCC","GND", "SIG_IN"]} showAsSchematicBox={showAsSchematicBox}>
<port name="VCC" direction="left" connectsTo={["R_l.pin1"]} />
<port name="SIG_IN" direction="left" connectsTo={["R_l.pin2"]} />
<port name="GND" direction="right" connectsTo={["C_d.pin2"]} />
<resistor name="R_l" resistance="1k" footprint="0402" />
<capacitor name="C_d" capacitance="1uF" footprint="0402" />
<trace name="tr_internal_vcc" from=".R_l.pin1" to=".C_d.pin1" />
</subcircuit>
)
}
export const ControlCircuitSystem = () => {
return (
<group name={name} showAsSchematicBox={showAsSchematicBox}>
<SensorFrontEnd name="sensor" showAsSchematicBox={true} />
<SignalProcessor name="processor" showAsSchematicBox={true} />
<trace name="t_signal_bus" path={["sensor.SIG_OUT", "processor.SIG_IN"]} />
<trace name="t_vcc_bus" path={["sensor.VCC", "processor.VCC"]} />
<trace name="t_gnd_bus" path={["sensor.GND", "processor.GND"]} />
<port name="SYS_VCC" direction="left" connectsTo={["sensor.VCC"]} />
<port name="SYS_GND" direction="left" connectsTo={["sensor.GND"]} />
</group>
)
}
```
Vivek Vijayan
I found the mistake. Instead of `exposeNets` boolean, I was using `exposedNets` string[]. Now I can connect subcircuits with each other. Still schematic view is buggy.

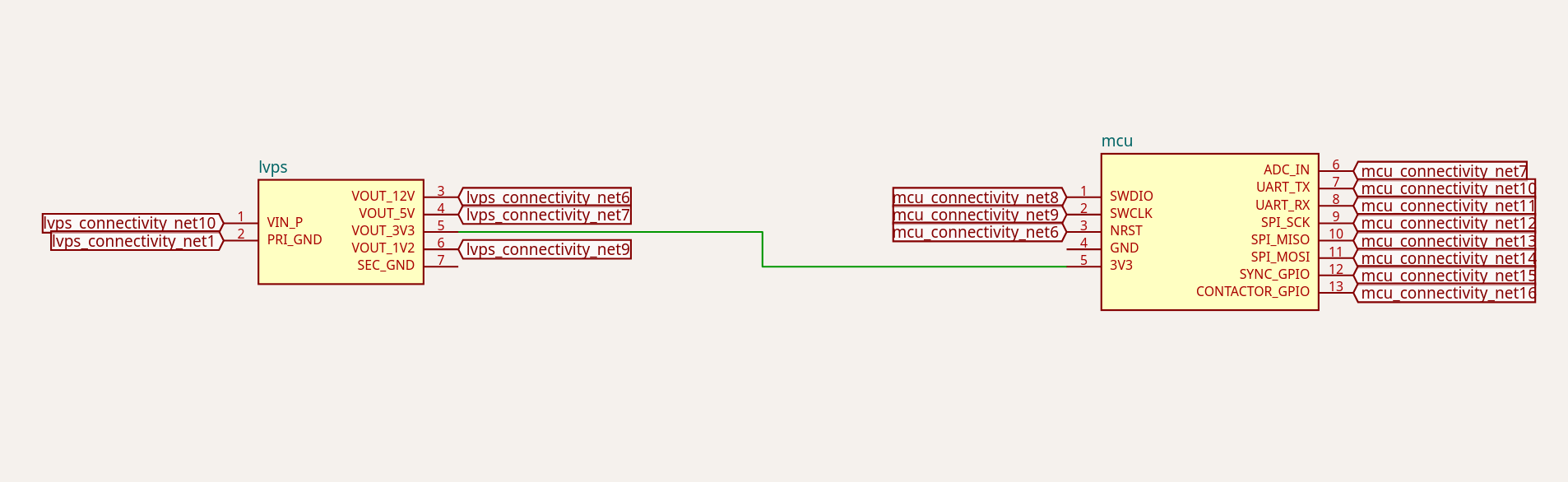

In the code, there is a connection between lvps.SEC_GND and mcu.GND. But it is not rendering properly.
```
{/* Power: LVPS 3.3V to MCU 3.3V */}
<trace name="t_v3v3_link" path={[".lvps > .VOUT_3V3", ".mcu > .3V3"]} />
<trace name="t_gnd_link" path={[".lvps > .SEC_GND", ".mcu > .GND"]} />
```
Also the ports are assigned with name <subcircuit_name>_connectivity_net<number>
Seve
Yea that is awful- cc <@1079361271687807026> (we must never manipulate names!)
Mustafa7
<@757706909351411845> isnt this repro https://github.com/tscircuit/core/pull/2735/files same as above circuit? you meant to fix the connectivity net names leaking right?
Mustafa7
The fix is the remove those netlabels right?https://github.com/tscircuit/core/pull/2738
Can you please clarify
Seve
The visual snapshot needs explatory text
Seve
Assume the viewer cant see the test code- because you repro’d separately i literally cannot
Seve
It is impossible to review!!!! I have no idea what im seeing!!
Mustafa7
i'll create a separate repro and tag you
Seve
If i expand test content i can see the code
Seve
But the visual snapshot needs explanatory text IN the schematic snapshot
Seve
So it is possible to review if i expand code on github
Mustafa7
https://github.com/tscircuit/core/pull/2742
Mustafa7
Closing as i think the behaviour might be correct, confusing and difficult to understand for now, Let me know if these "...connectivity_net0" etc netlabels are correct behaviour.
Seve
The connectivity net id net labels are not the correct behavior
Seve
For my review- i was commenting on your schematic text, it doesnt describe the issue
Mustafa7
<@757706909351411845>
