the route names are still problematic, everything should have an actual net name

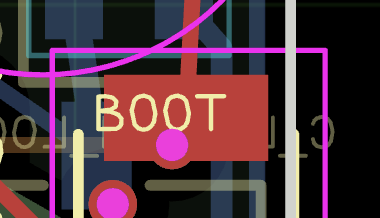

it looks like you might have via in pad in a couple places

probably ok tho

The area is too tight

i mean i don't know if they'll charge for that

Net names need to be more descriptive?

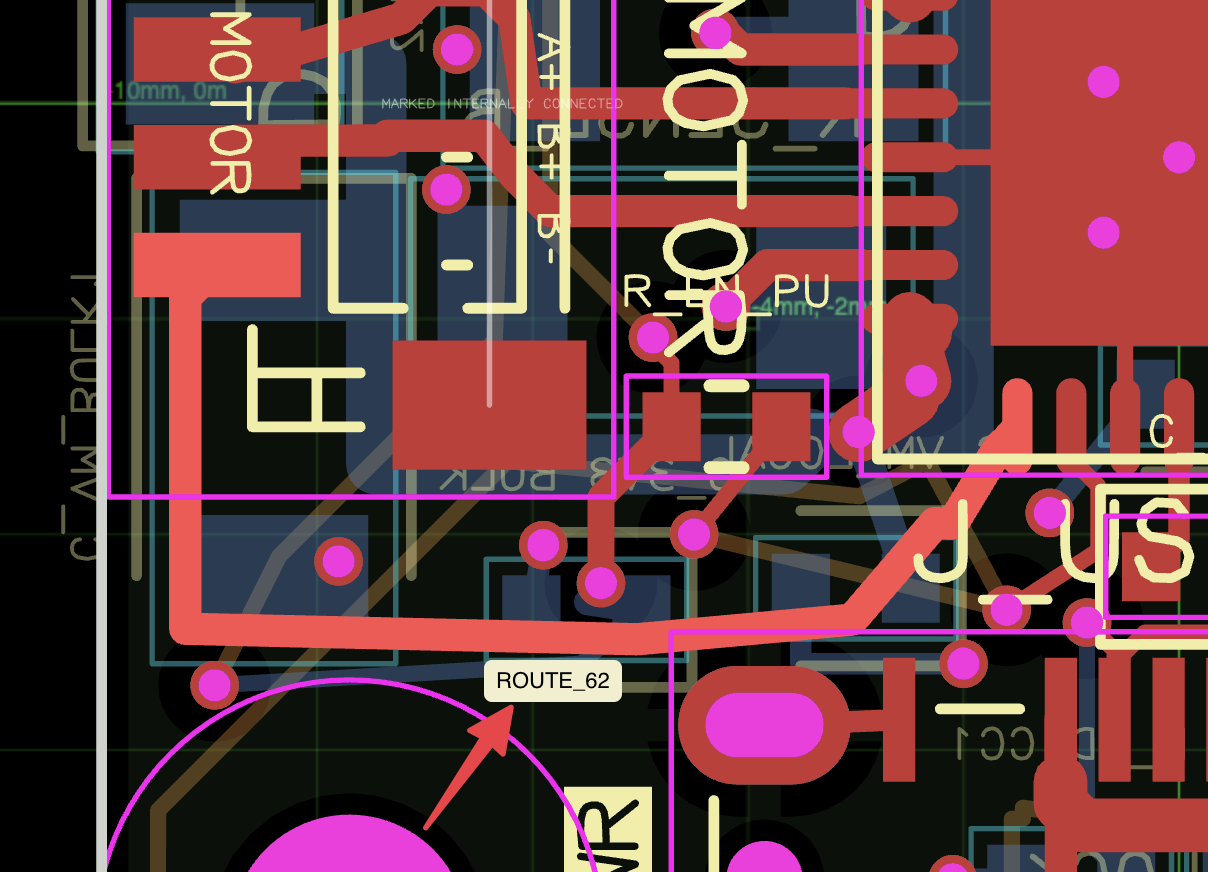

they are literally ROUTE_23

this is really hard to understand if you connected your JST properly- it has to match Rishabh's

because i use a particular type of cable

I don't see that name in the schematic

Does that mean they can have different names?

Ill look into it

hmm you're right!!!

i'm not sure why it's doing that but it's concerning

do you have a multi-color led on this

this one is pretty small https://jlcpcb.com/partdetail/XL-1615RGBC-2812B-S/C41413180

i think that's the only major thing. It's really easy to plug these in wrong so i'd be worried if we don't have a way to somehow tell the user something is wrong, also you can't give feedback on temperature, can't debug etc.

bad pins on the bottom, something to look into

i like this board, i think it's coming together, i think it'll sell a lot

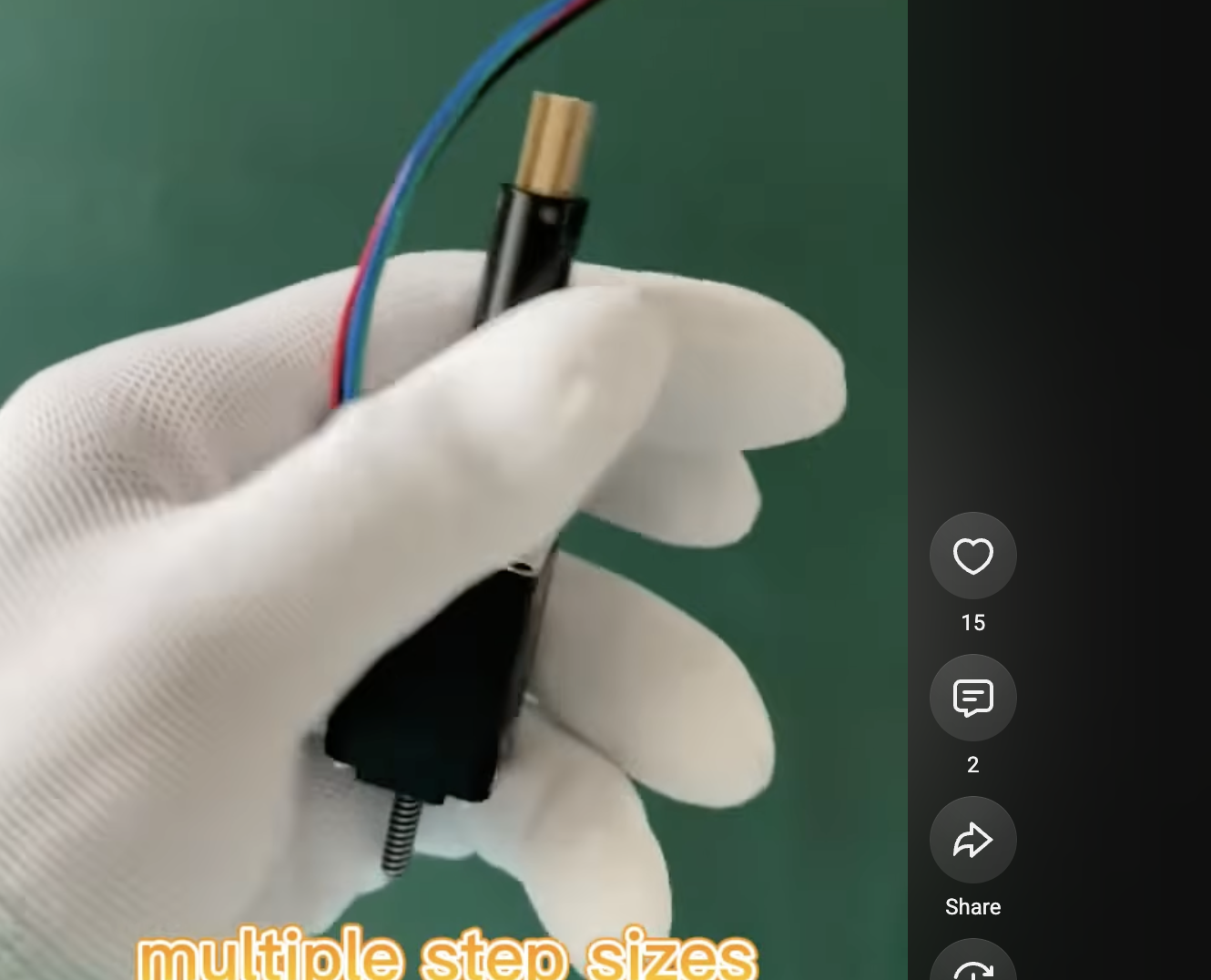

<@778624824875941908> the nema8 is the perfect motor to have for controlling the probe depth

people put linear actuators onto them

amazing form factor

You'd have to pre-order from the tscircuit store

<@757706909351411845> I do use a led and a temperature sensor, and the 3d model issue I fixed earlier in core but it's version is stale in the website, I also fixed the net names in the pcb

ok let me know when/what i should review

https://tscircuit.com/ShiboSoftwareDev/nema8-20mm-dual-usbc-stepper-controller

Last time you wanted to review the jst connections

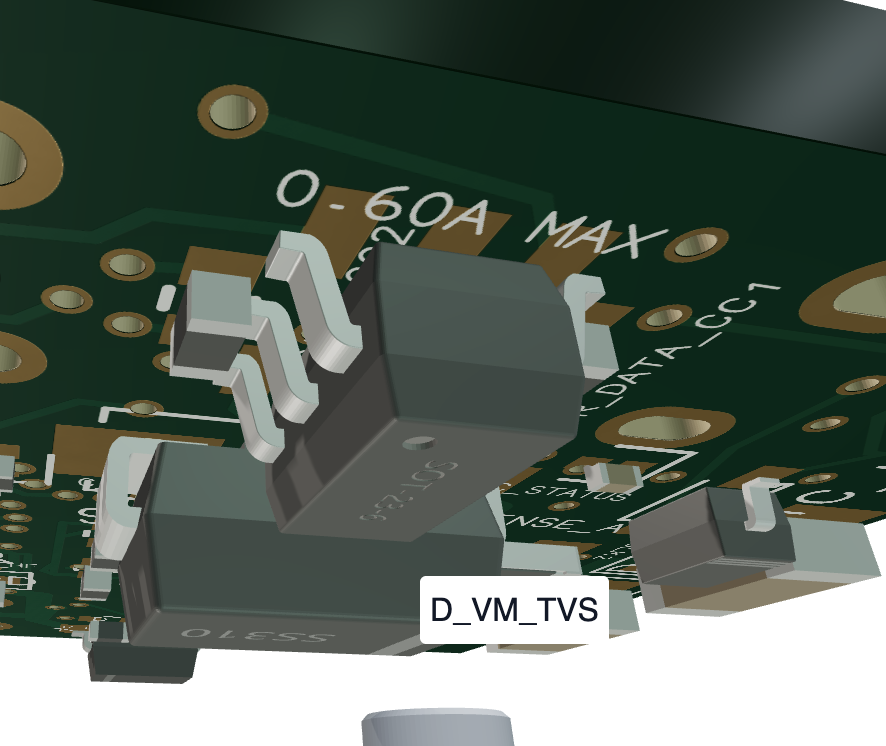

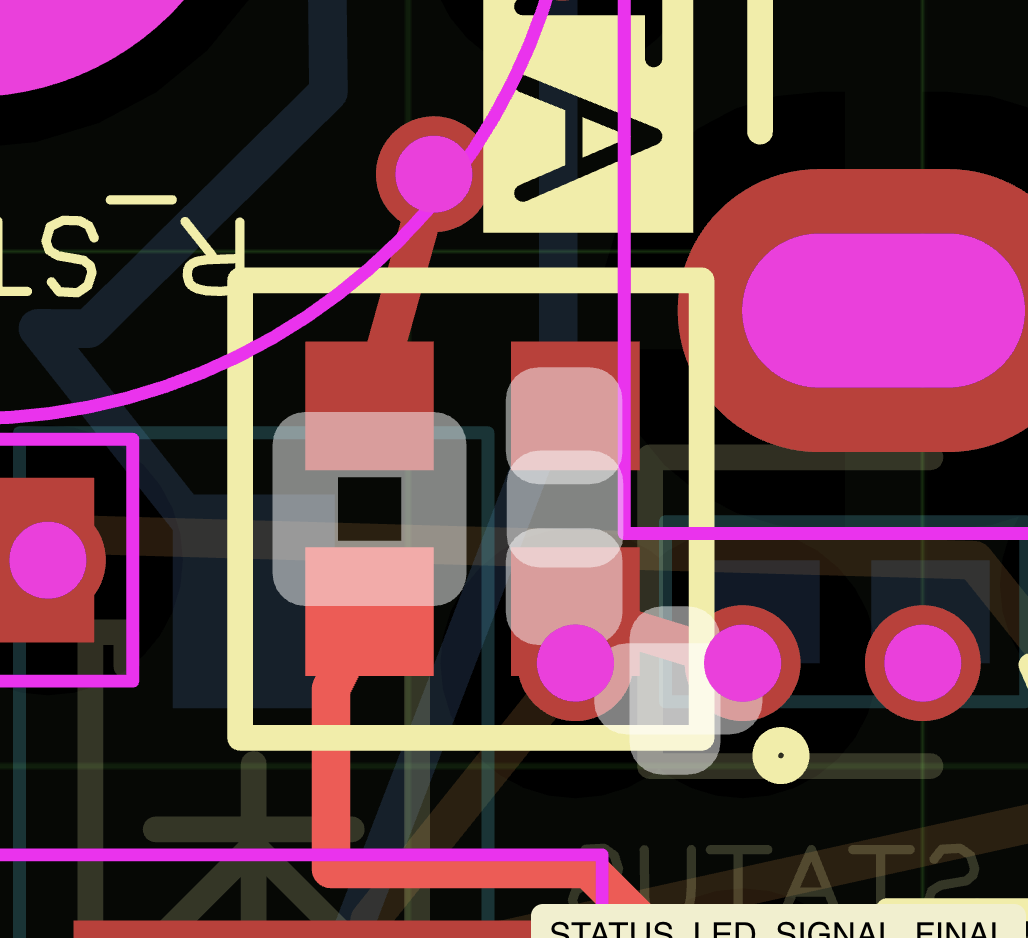

the led has some courtyard violations that aren't being captured, idk if the 3d model is accurate but i don't think so

<@778624824875941908> did you check that the jst connections are identical to Rishabh's-

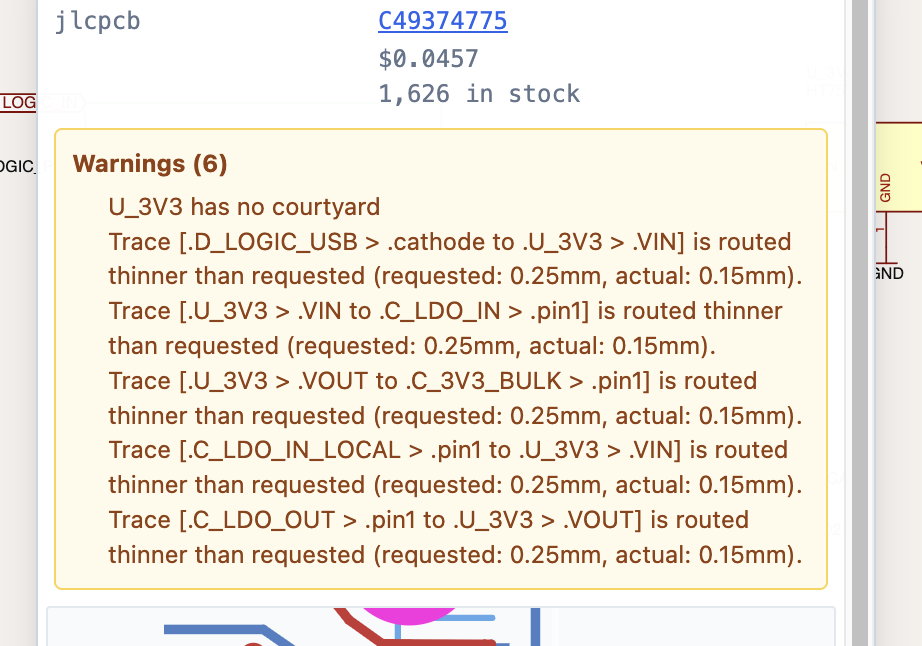

maybe you should review the warnings

i would maybe even try to get to 0 warnings because that's just generally a good criteria to have, and it would have cought the LED bug above

also if there's a bad warning, this gives you the opportunity to do a fix for it

i'm very excited for this board btw
