# designreview·Active

@Rishabh please review: https://

mention please review: https://tscircuit.com/ShiboSoftwareDev/nema8 20mm dual usbc stepper controller 3d

Started by shiboOct 8, 202614 messages

Discussion

Last active 10 days ago · plain text

shibooriginal postOct 8, 2026, 7:24 PM

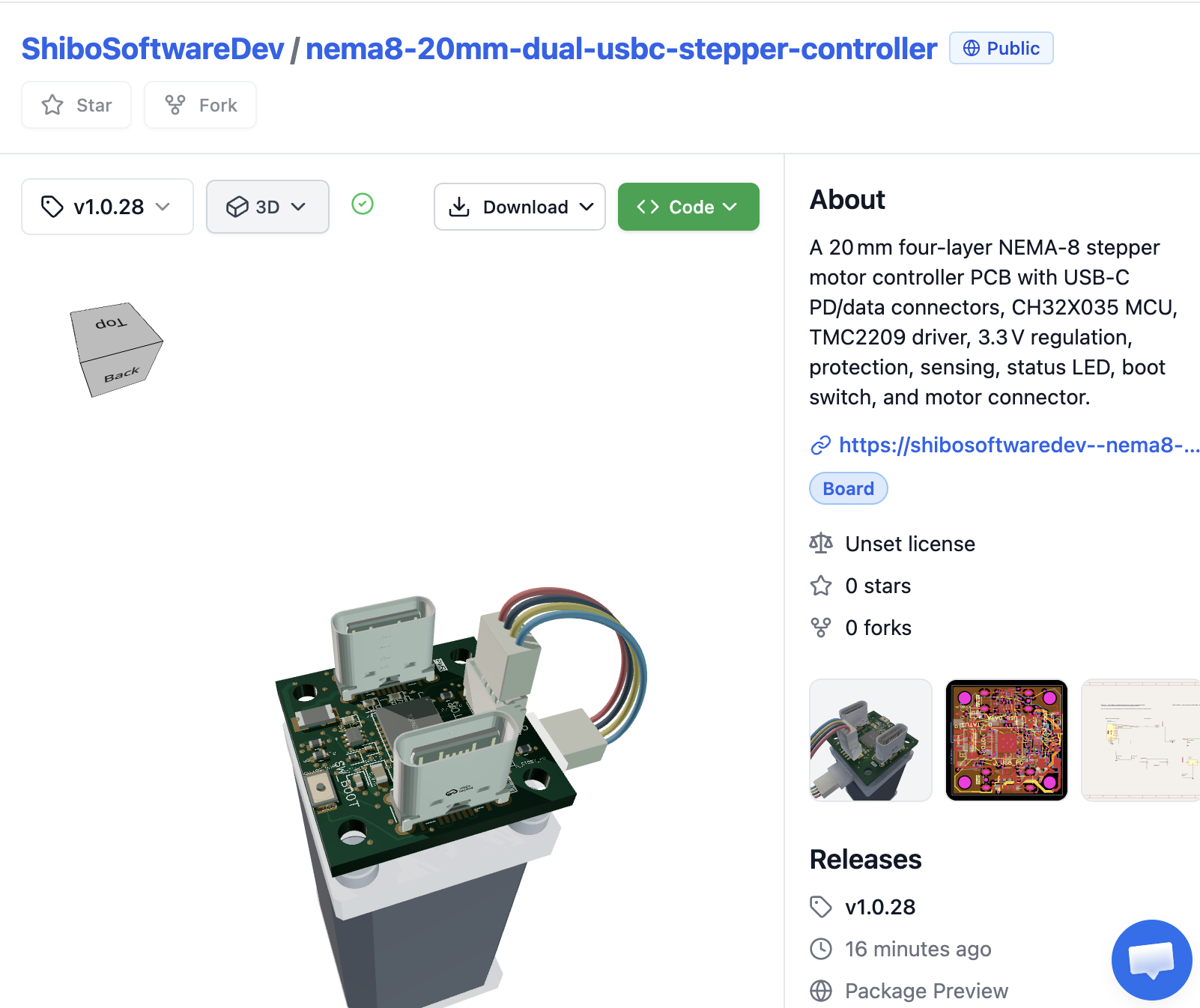

<@809856037376491570> please review: https://tscircuit.com/ShiboSoftwareDev/nema8-20mm-dual-usbc-stepper-controller#3d

RishabhOct 8, 2026, 8:04 PM

I made ai go through and review, and the arguments are reasonable. The placements are not great

RishabhOct 8, 2026, 8:05 PM

Shared an attachment

RishabhOct 8, 2026, 8:05 PM

Shared an attachment

RishabhOct 8, 2026, 8:06 PM

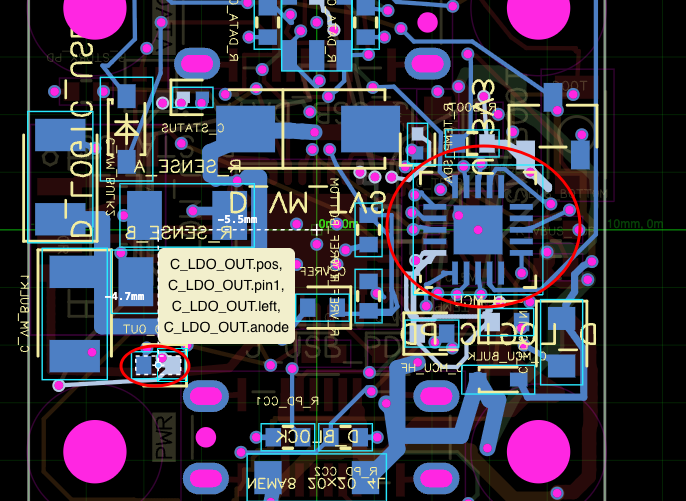

This should be moved closer

RishabhOct 8, 2026, 8:07 PM

Shared an attachment

shiboOct 9, 2026, 4:20 AM

<@757706909351411845> <@809856037376491570> please review again https://tscircuit.com/ShiboSoftwareDev/nema8-20mm-dual-usbc-stepper-controller

SeveOct 9, 2026, 4:22 AM

shibo your schematic uses ROUTE_23 etc. for names

SeveOct 9, 2026, 4:23 AM

the schematic can't be reviewed

SeveOct 9, 2026, 4:23 AM

there are no ne names

shiboOct 9, 2026, 7:11 AM

fixed

shiboOct 9, 2026, 4:47 PM

<@809856037376491570>

shiboOct 10, 2026, 3:33 AM

<@757706909351411845>

SeveOct 10, 2026, 4:30 AM

you still didn't fix many net names
