# designreview·Active

https://tscircuit.com/rushabhcodes/ESP32

https://tscircuit.com/rushabhcodes/ESP32 E Reader schematic 🙏 🥺

Started by ! Rushabh | Linux ShillOct 7, 20268 messages

Discussion

Last active 12 days ago · plain text
! Rushabh | Linux Shilloriginal post
https://tscircuit.com/rushabhcodes/ESP32-E-Reader#schematic 🙏 🥺
Rishabh

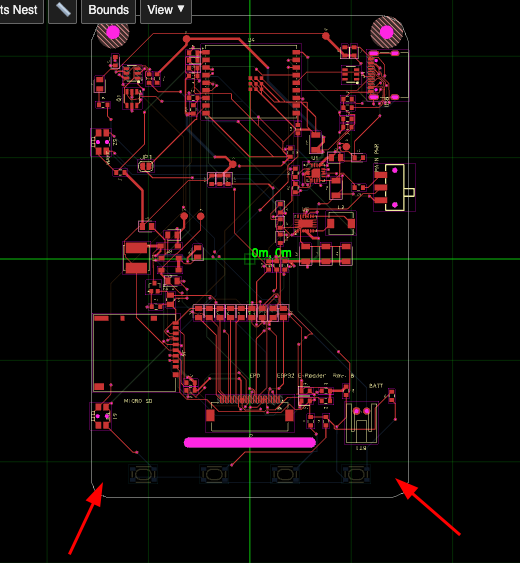

No mounting holes at the bottom? how will you mount this to the enclousre?
Rishabh

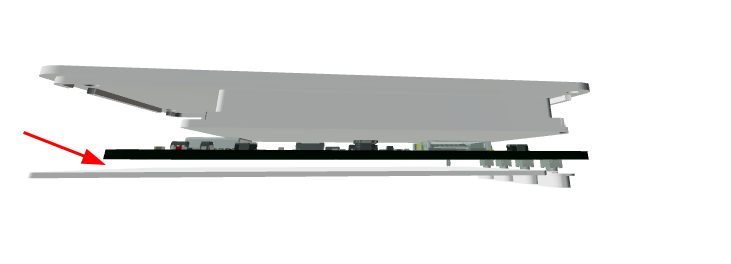

I think you would need some kind of spacers here, which you're missing in the assembly. Maybe think through the assembly more
Rishabh
Not the right switches for the button caps, reference the gameboy switches
! Rushabh | Linux Shill
to keep the screen away from board??
Rishabh
yeah, the screen can't just fly over there. it needs some support to be kept on
! Rushabh | Linux Shill
are there any other issue other than assembly
Rishabh

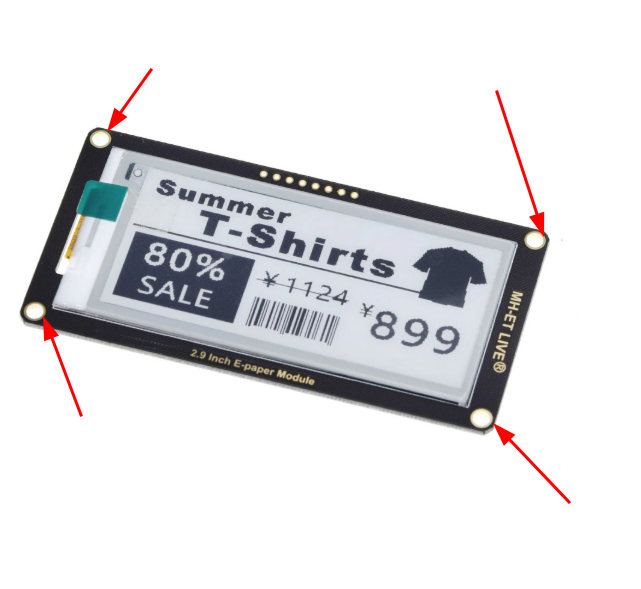

Your pcb board will also need those holes, so that you can screw in the eink display from all around the corner. So keep the dimensions accurate
