@Rishabh please review: https://

mention please review: https://tscircuit.com/shibosoftwaredev/f1c100s linux nema17 stepper controller pcb

Started by shiboOct 4, 202612 messages

Discussion

Last active 15 days ago · plain text

shibooriginal postOct 4, 2026, 5:11 PM

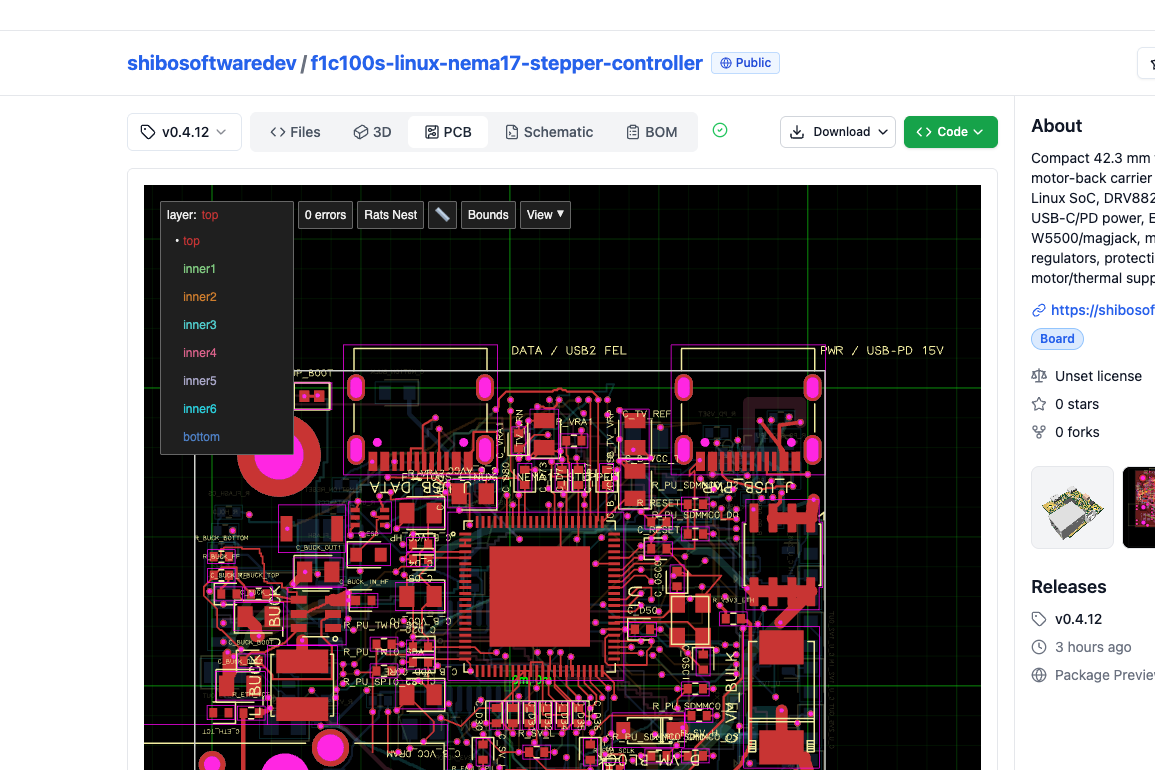

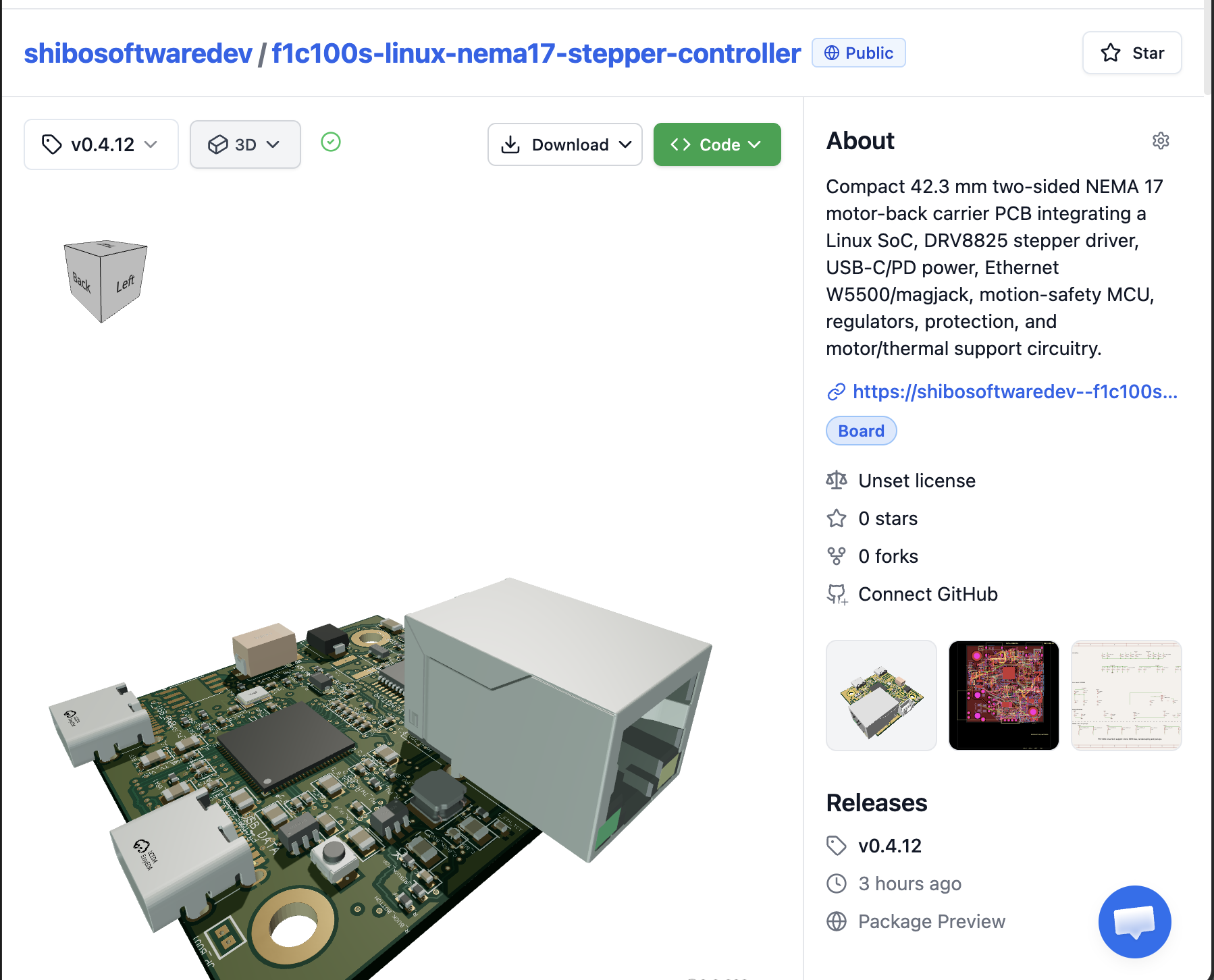

<@809856037376491570> please review: https://tscircuit.com/shibosoftwaredev/f1c100s-linux-nema17-stepper-controller#pcb

RishabhOct 4, 2026, 5:18 PM

8 layers?

shiboOct 4, 2026, 5:19 PM

RishabhOct 4, 2026, 5:19 PM

Shared an attachment

RishabhOct 4, 2026, 5:21 PM

Shared an attachment

RishabhOct 4, 2026, 5:21 PM

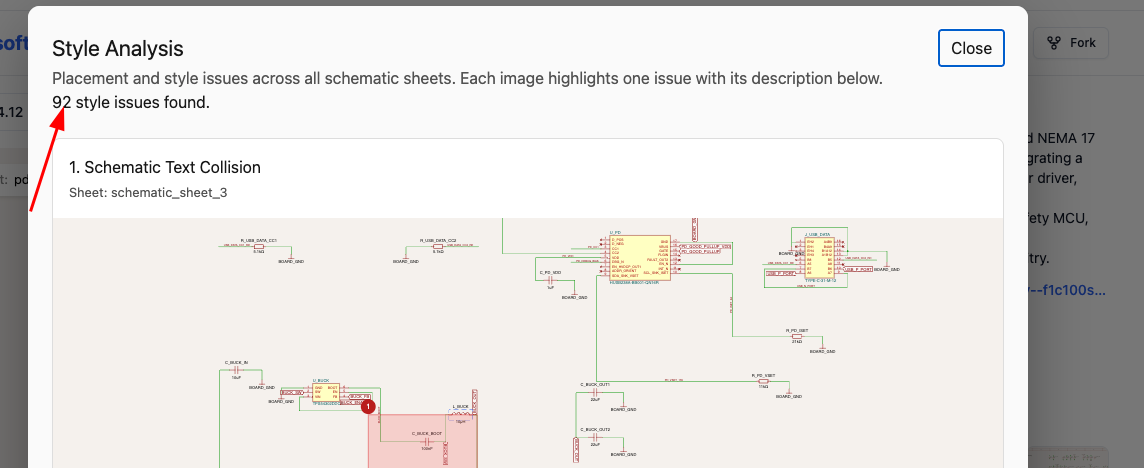

Fix these basic errors first

shiboOct 4, 2026, 5:21 PM

latest was not pushed, sorry for that

shiboOct 4, 2026, 5:22 PM

how do i see those?

RishabhOct 4, 2026, 5:35 PM

run the schematic-analysis from the cli

RishabhOct 4, 2026, 5:35 PM

or also present in the menu, right click and you will find it

shiboOct 4, 2026, 6:33 PM

<@809856037376491570> 4 layers with no sch style analysis issues

SeveOct 4, 2026, 7:25 PM

i think we need 4 mounting holes, since this is on the back of a motor it vibrates etc.
