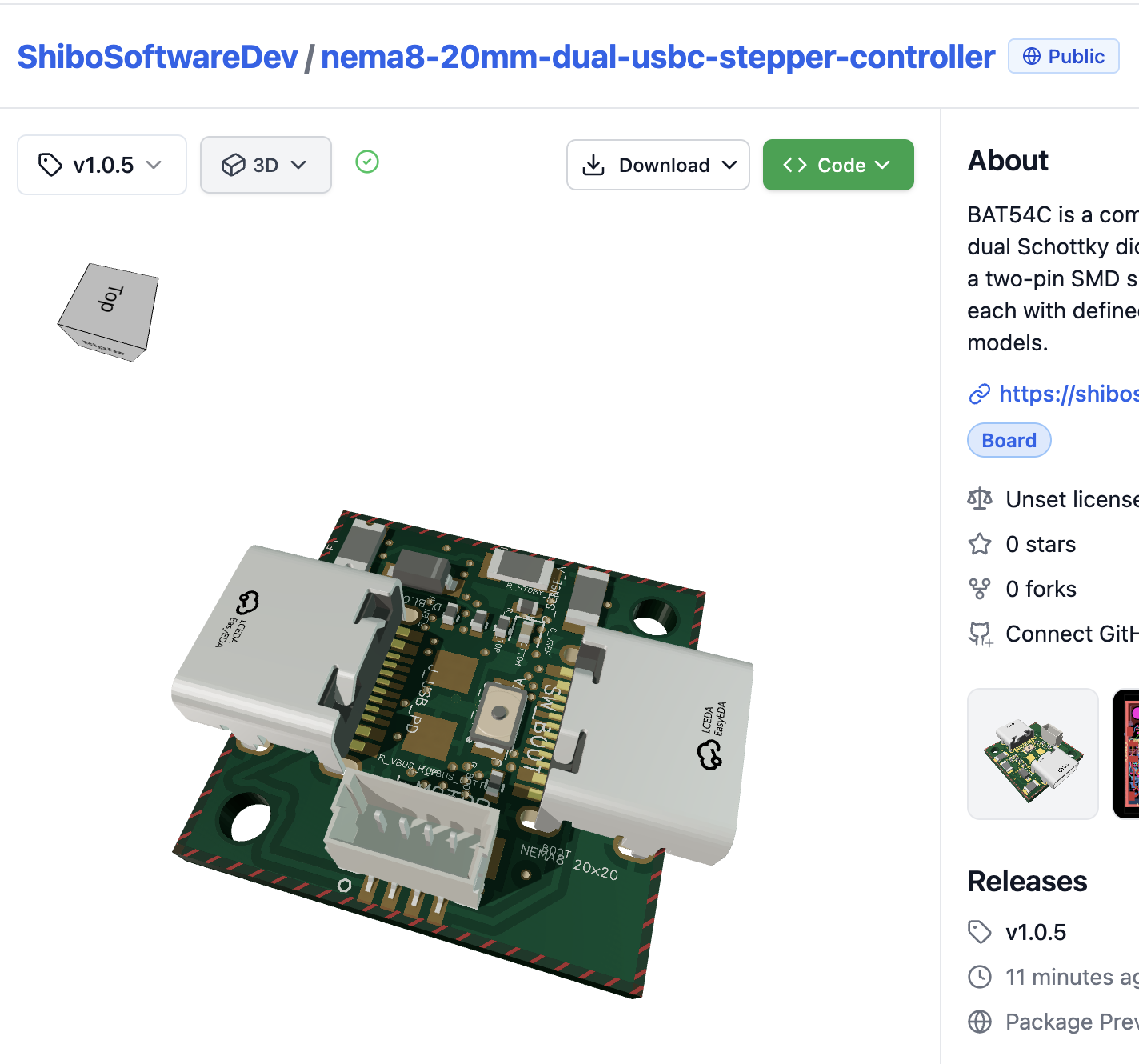

20x20mm nema8 board

make sure the PWR and DATA is clearly marked in silkscreen if possible, also ideally 4 mounting holes

you should really try to get the driver on the top haha

i'll try yeah, just wanting to get an initial review

you can also use an edge-facing JST, might save space not sure

well the board is 6 layers

and it has to be 4

actually it's 8 layers

idk how you didn't see that tbh lol

people aren't doing self review haha

I didn't know we had a 4 layer limit

upload it to jlc and check the cost

if the cost is ok maybe we can do 8 layer but it's probably not

yeah 8 layers is 90 dollars extra off the bat, pre tax and all

that is a bit high

i think you might be able to find a usb-c connector that uses less space

one type of connector that uses a lot less space is a vertically mounted connector, they are less secure though, probably not the right fit for this

ideally usb-c ports on same side

how you secure a vertically mounted connector is you make an enclosure that can help hold them. So it is possible to use a vertical usb-c connector for this, the enclosure isn't that hard to design

i'll make this my last option
