0hmx - @Seve https://0hmx.com/artifacts/pcb-gen...

tyty

<@400684445054795796> this is very good because of the visuals, but we should attempt much more complex boards, then i think we can start building content on it potentially

this is good work

i wish i had seen this during the meeting because it is compelling

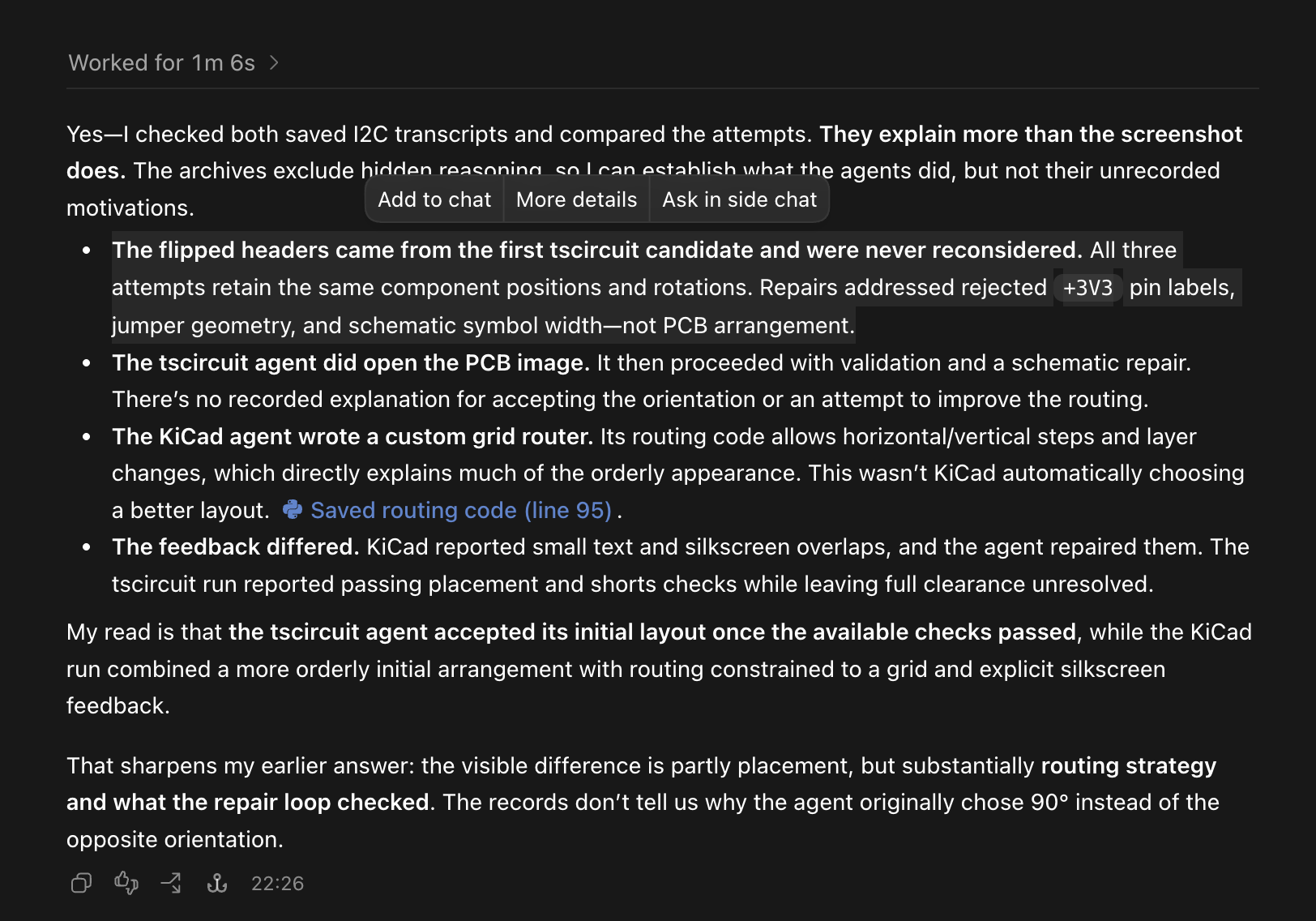

I asked the AI why our pin header was flipped, and ai skips visual validation for us. We might just need to write a better skill. It’s not actually doing that much validation—it never checks or looks at the PCB images after the tsci checks pass in tscircuit. It basically turns off its intuition at that point.

yea makes sense

i think us outputting svgs a lot isn't helping

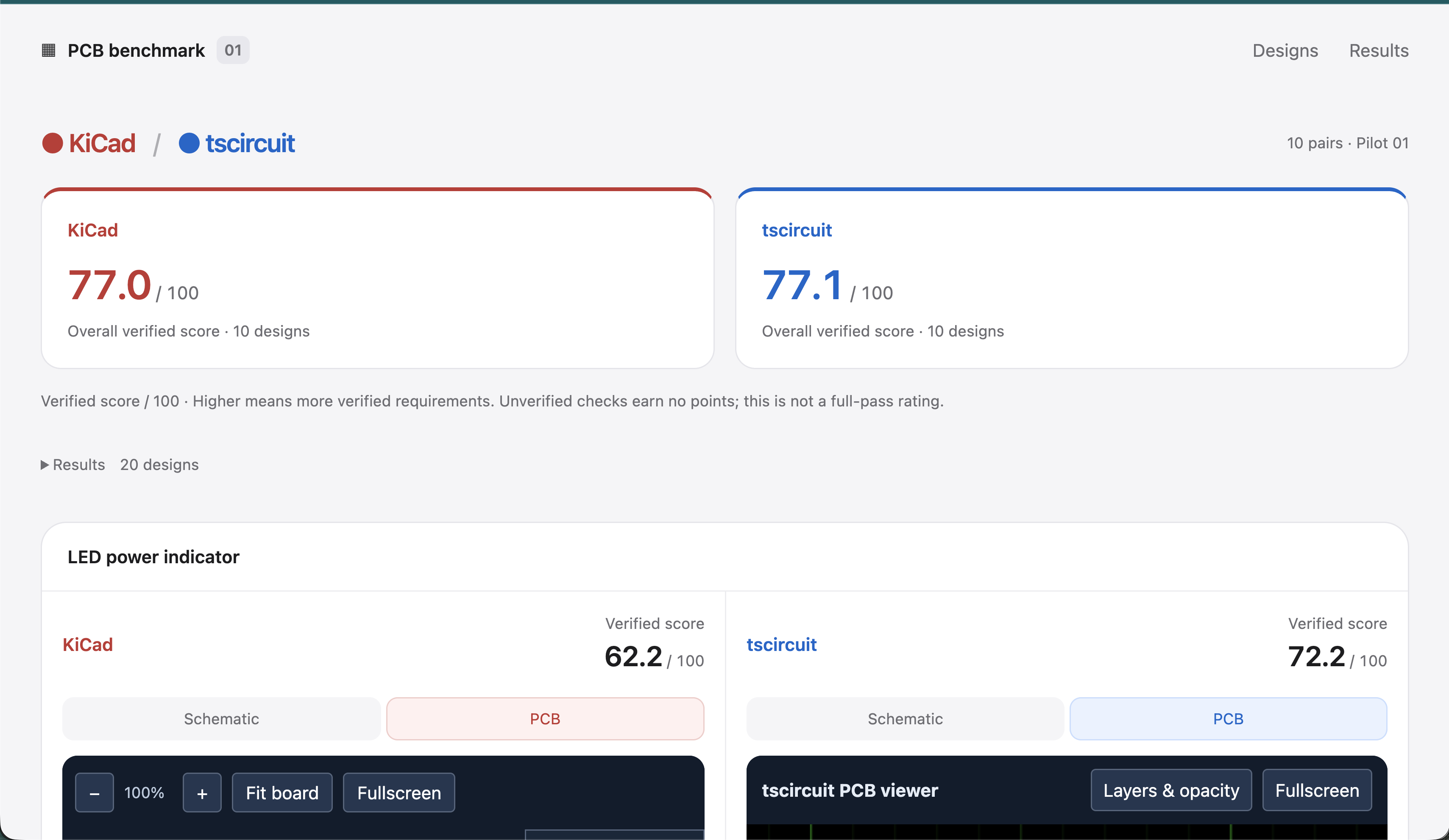

update the site because it was so hard to read and make sence of https://0hmx.com/artifacts/pcb-generation-benchmark-01/

https://pcb-generation-benchmark01.vercel.app/

https://0hmx.com/artifacts/pcb-generation-benchmark-01/
