mohan-bee - @Seve @Rishabh @0hmx etc.. i hav...

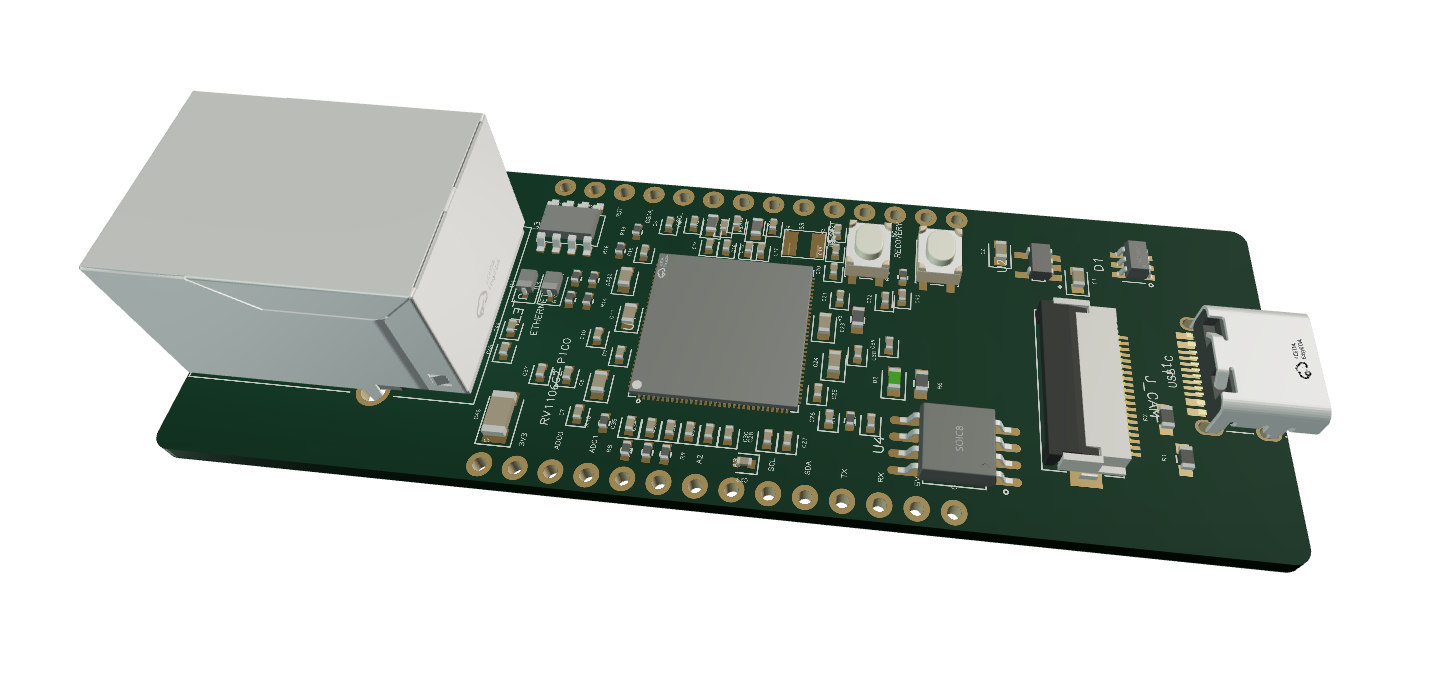

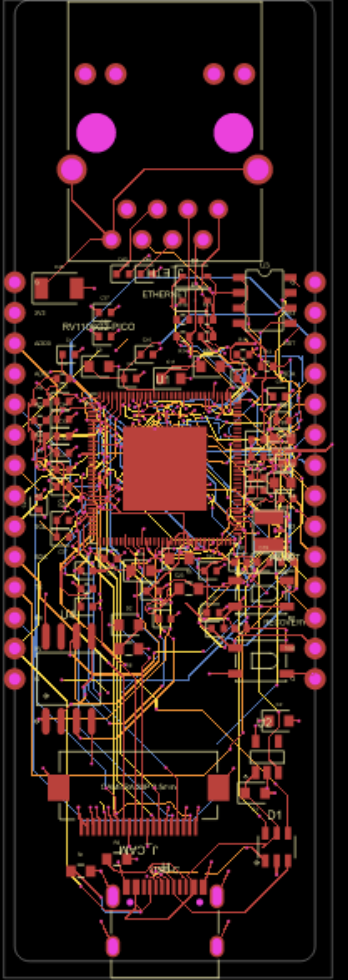

mention mention mention etc.. i have been trying to route this board , but this stuck at some phases ,, any tips .. so that this board gets routed successfully ..

Started by mohan-beeSep 2, 20265 messages

Discussion

Last active 2 days ago · plain text
mohan-beeoriginal post
<@757706909351411845> <@809856037376491570> <@400684445054795796> etc.. i have been trying to route this board , but this stuck at some phases ,, any tips .. so that this board gets routed successfully ..
0hmx
Custom auto route function
0hmx
Or increase the board size
Seve
it looks like it is routing?
Seve
there is room to make the board a bit less cramped and personally i would remove the pinheaders and replace with a JST for the SPI line for example
