wifi rc car board

is this right ?

ah this is cool

can you break the schematic into multiple schematic sheets, why is this happening

Yea got a pr

Already having reviewing

can you also update to latest tscircuit

some of the traces look a bit odd

ok

tscircuit is up to date actually

interesting

yea maybe add schematic sheets

yea working.

i'm surprised you're missing refdes etc. on one component

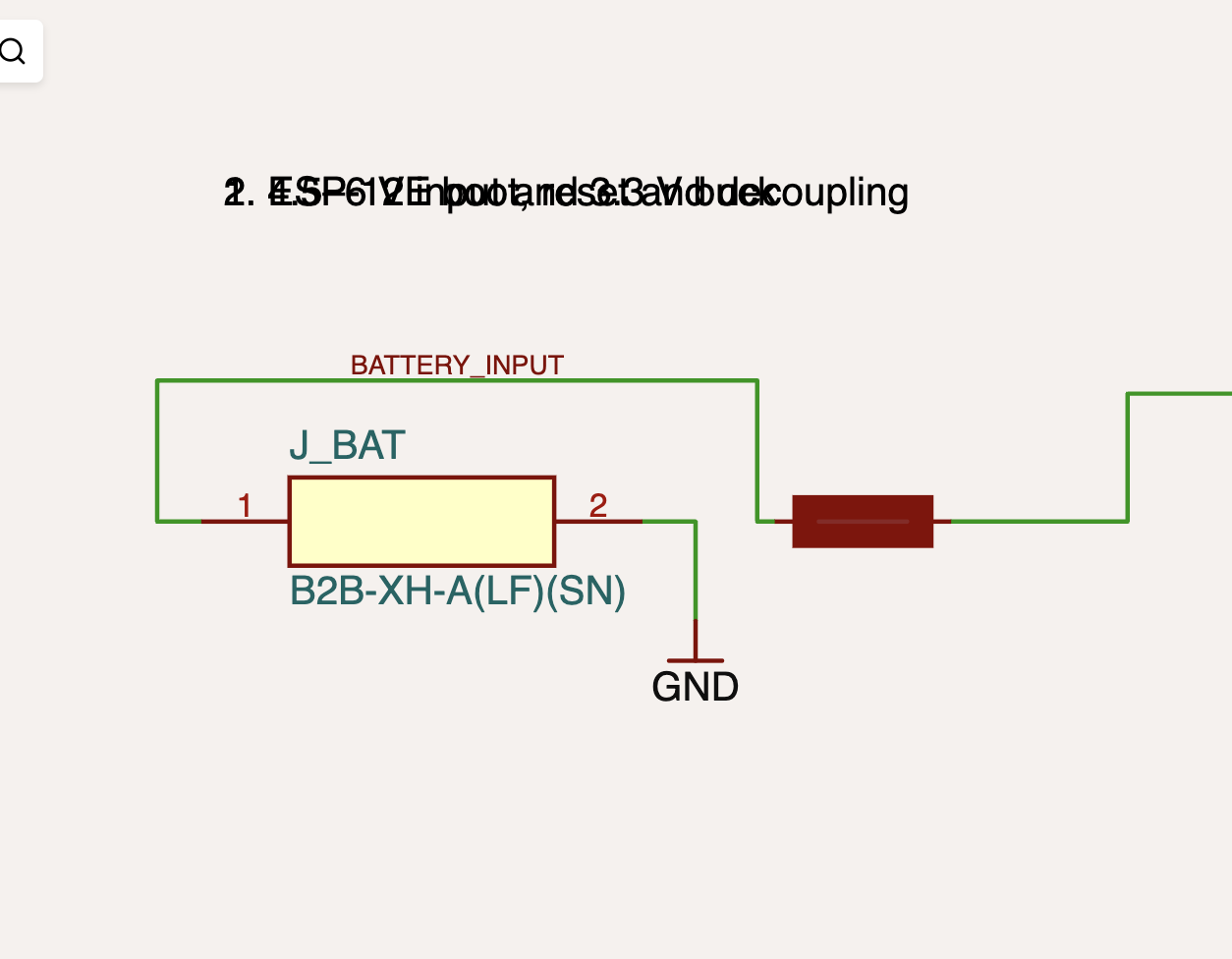

actually the issue is two sections gets overlapped when the section 2 component manually gets into section 1 it becomes a single section and the displayName overlaps

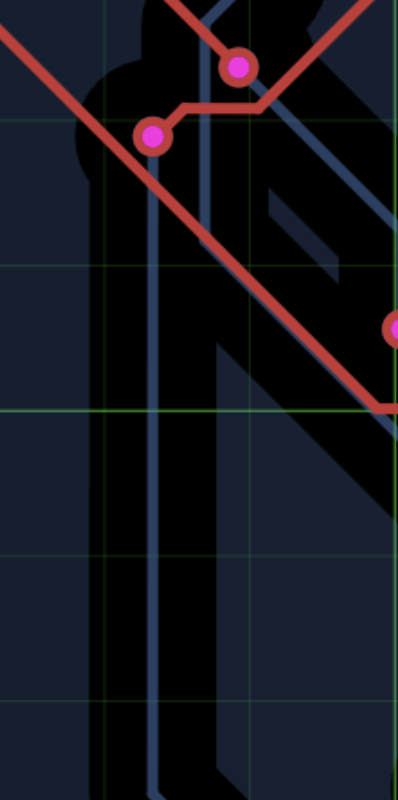

tried to render the line that doesn't come well ... probably we can have a offset horizontally , this could be fixed in the code itself butt i see this type of overlap most of the time

the possible fix

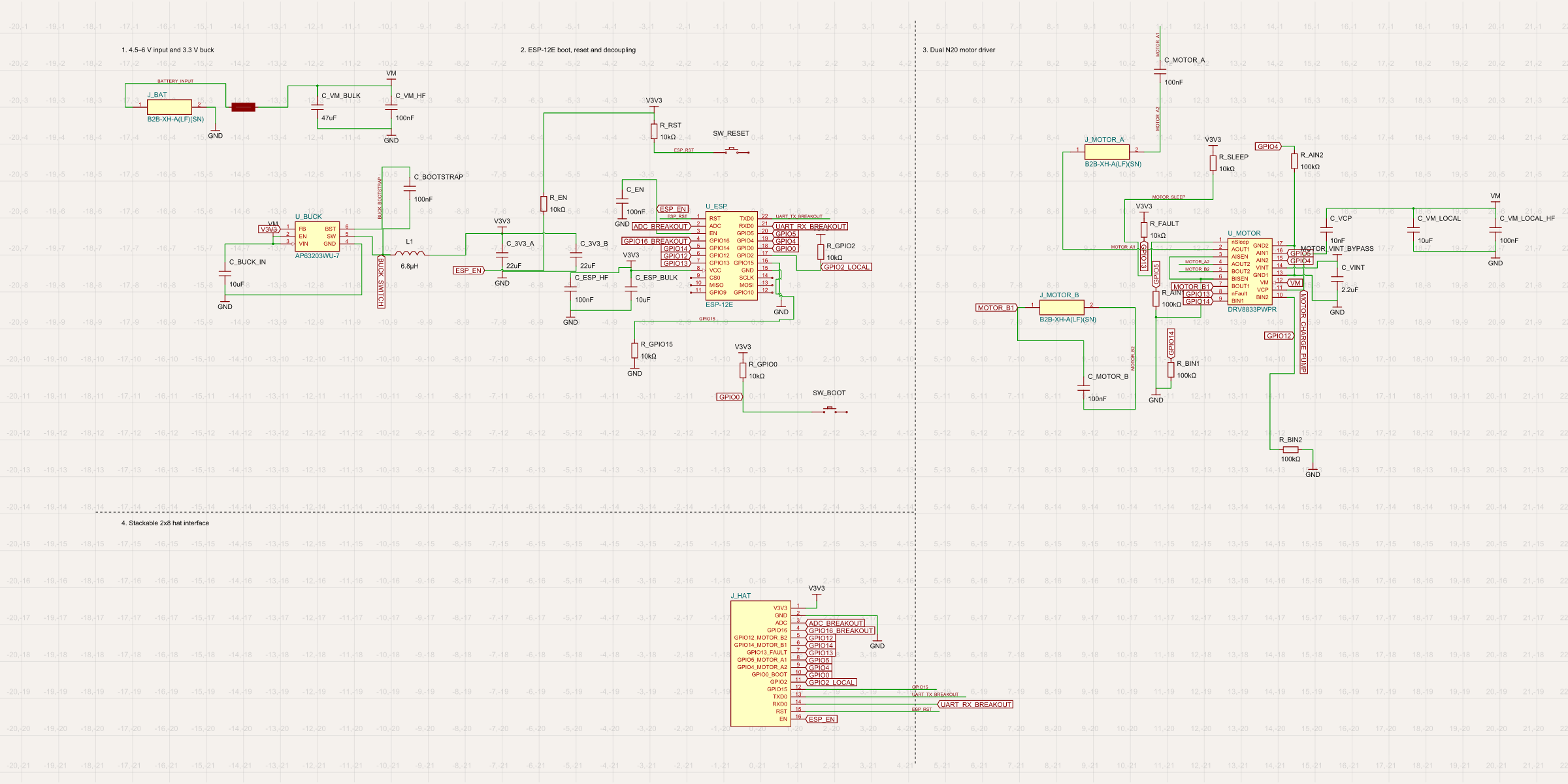

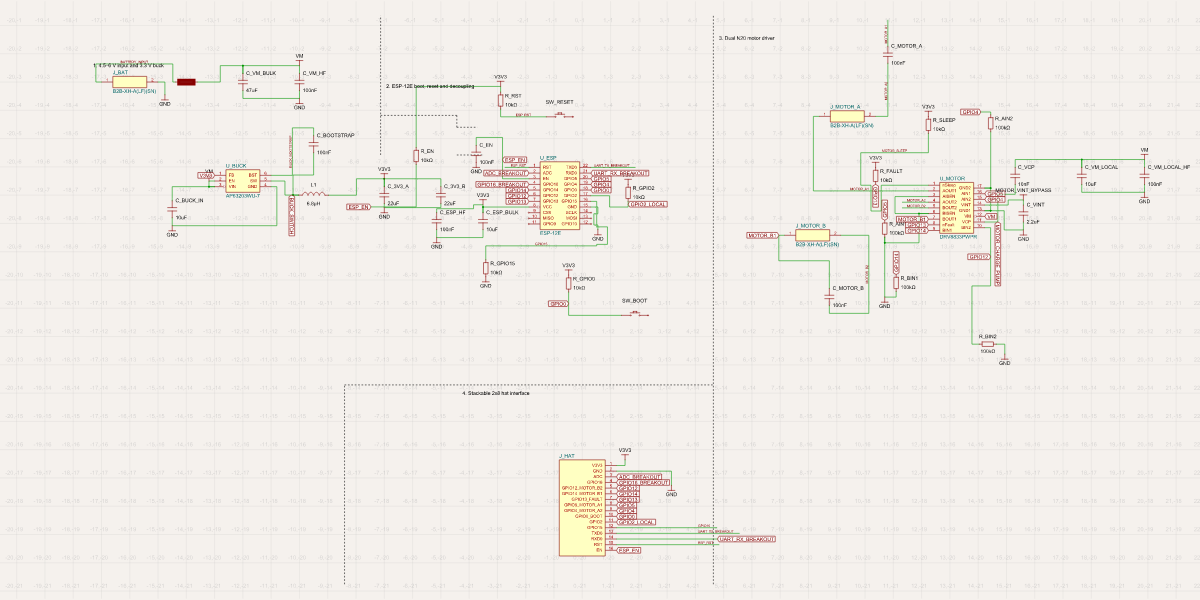

the schematic is better but still not readable tbh

make sure J_MOTOR_A has pins on the same side, make sure the passives are cleanly/appropriately arranged
