! Rushabh | Linux Shill - Why does this board r...

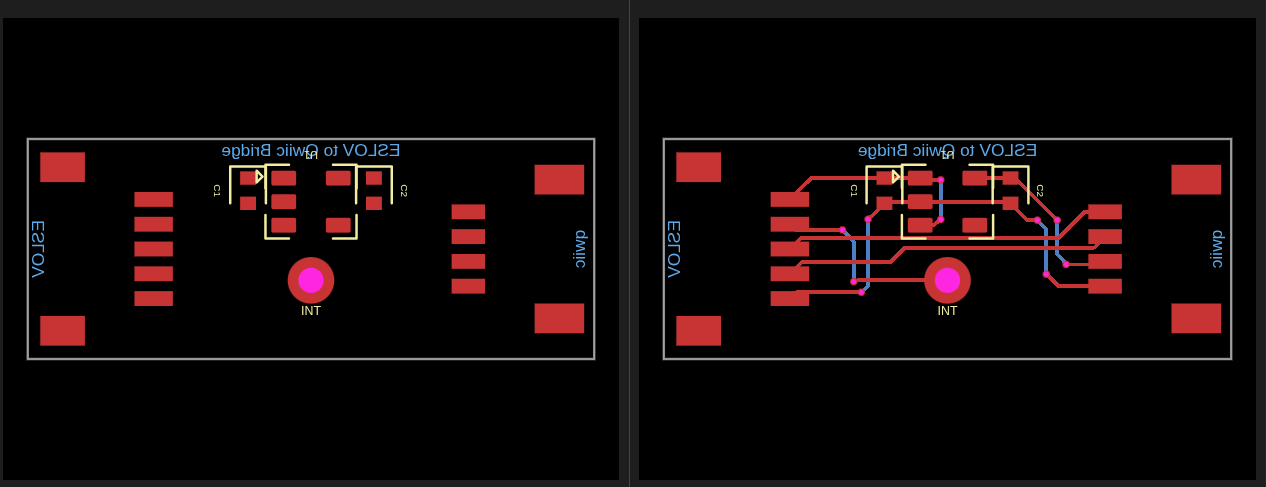

Why does this board require maxDecouplingTraceLength="6mm" instead of the default 1 mm? Is there a way to fix the routing by repositioning the components, or is 6 mm the safest solution without significantly changing the physical layout?

Started by ! Rushabh | Linux ShillAug 27, 20268 messages

Discussion

Last active 8 days ago · plain text
! Rushabh | Linux Shilloriginal post
Why does this board require maxDecouplingTraceLength="6mm" instead of the default 1 mm? Is there a way to fix the routing by repositioning the components, or is 6 mm the safest solution without significantly changing the physical layout?
! Rushabh | Linux Shill
Removing pcbX/pcbY enables automatic placement, but the solver placed C1 near the board edge and farther from U1, so it made the situation worse.
! Rushabh | Linux Shill
<@&1420812538421051555>
! Rushabh | Linux Shill
is this a bug, our automatic placement should respect maxDecouplingTraceLength, right ?
0hmx
dose the auto router fail with 1mm ??
! Rushabh | Linux Shill
1 mm is the default and yes it fails
! Rushabh | Linux Shill

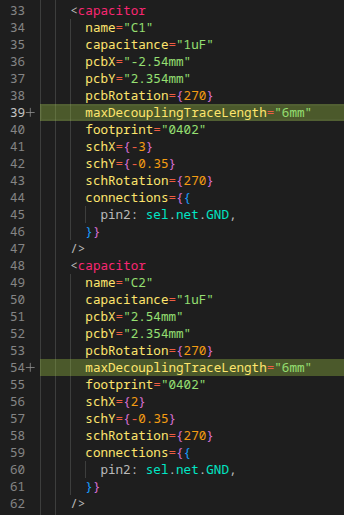

i had to explicitly add maxDecouplingTraceLength="6mm" for it to route
0hmx
any bug report will be good do you have the tsx code
