are you able to do soldering to put the coin cell on the back

otherwise we have to pay for two sided assembly which is fine but it is pretty simple to solder if you do do it

or you could do all the soldering for this board b/c it's quite simple to put together i think

looks pretty good, i like the speaker symbol

i would say the schematic buttons part could be made much simpler by putting the resistor and button inline

How do you program this ? if you are going to use a external attiny programmer then you don't have to assemble , also I see a cap in bottom .. keep that in top itself , for the coin cell holder yea you can easily solder .. if you can't some shops do that ig.

yea you need some kind of way to program e.g. test points, i think via swd

add a jst port

then we can easily do it in lab

hey also in the i see the S1 has 4 pins but sch rep as 2 pin switch take look.

yea cuz two are internally connected

Yeah, I can do it

noise

*noice

so maybe mark that coin cell as doNotPlace and save us from two sided assembly costs

you can also check out the cost of both options and lmk

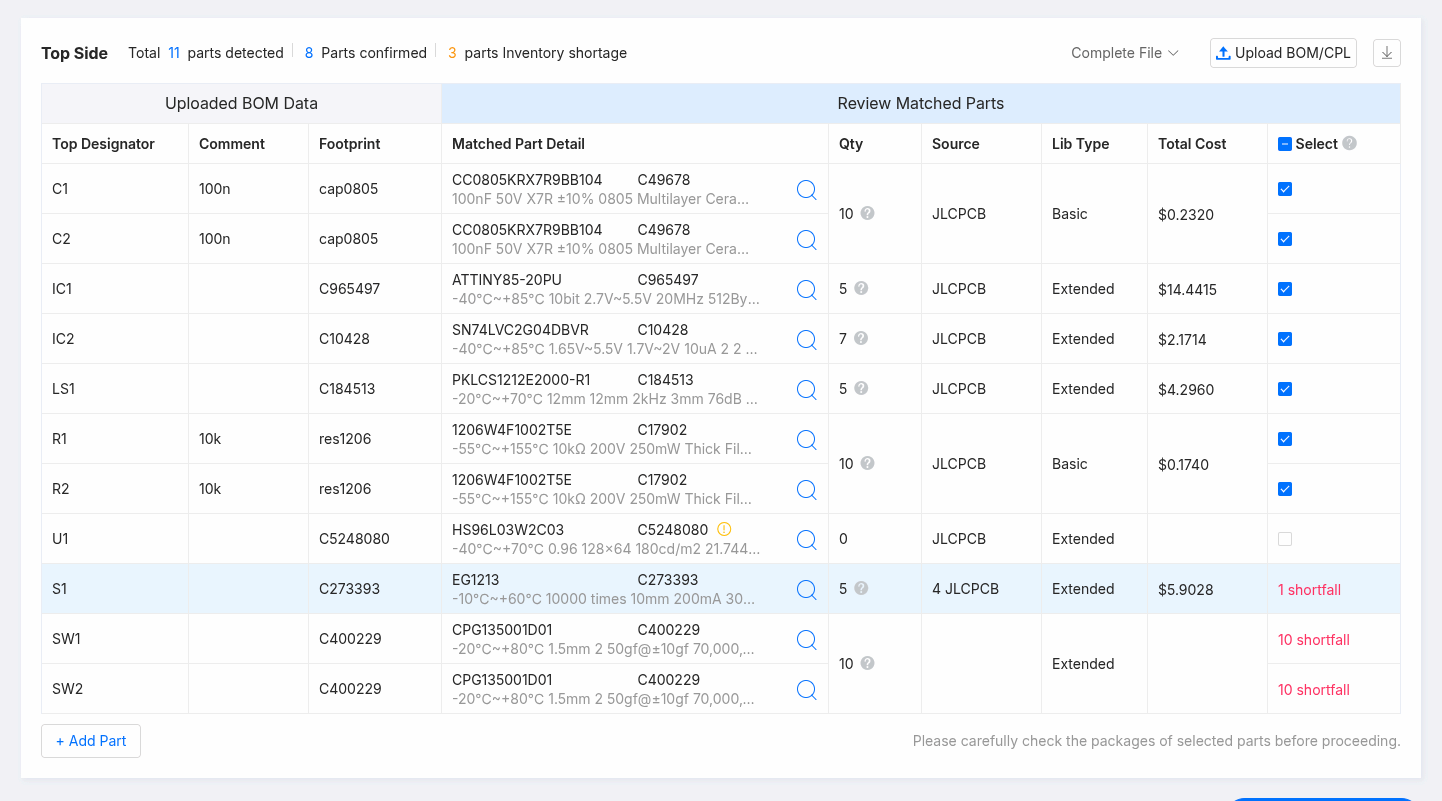

Actually, I’ve never ordered a PCB before, so I’m not really sure how the ordering process works or how to check the cost. I tried using JLCPCB, but it only shows a $2 + shipping special offer for my first order, so I can’t see what the regular price would be.

<@757706909351411845>

yea you have to go all the way to checkout, make sure to select that you want the top side assembled

<@398467566588264449> can help you as well, we should have a video tutorial at some point

Hye can we order together <@452450065941004289>

I will help you through

maybe will also cutout the delhivery and import duty tax !

which alone gets upto $50

<@757706909351411845> wdyt ?

🤷 i would just order separately to get it to your house etc haha

but that will like blow up to $100 just for delivery and import tax!! For both . maybee after received here we will deliver through local providers

Its not a huge deal, i want people to work with jlcpcb support

<@452450065941004289> keep your via 0.3mm minViaHoleDiameter="0.3mm" minViaPadDiameter="0.45mm"

done

i was wondering if we could order this

go for it

you're going to need a programmer tho

make sure you understand the programming procedure and have an SWD breakout maybe with a JST connector

maybe you can assemble 2 boards ?

is that switch ?

yes

ig this has lot of stock , https://jlcpcb.com/partdetail/C49023765

not this, the keyboard one

maybe this works https://jlcpcb.com/partdetail/HanElectricity-CPG151101D13/C49234235

this footprint is different maybe you need to tweak your design too for this

ATTINY cna be programmed with an UNO

i already have an UNO

yea but do you have something exposed so that you can connect to the attiny
