<@757706909351411845> <@809856037376491570> wip BOOSTXL-TLV8544PIR booster board
https://tscircuit.com/editor?package_id=bed74543-57fe-4324-8e84-63b1dadd5986&file_path=index.circuit.tsx
Abse
yeah still working on it
Abse
I think this means theres a dep needs to be updated ??
Abse
for the small symbols ?
Rishabh
Not sure, could be a trace solver issue or placement issue as well
Seve
!!!
Seve

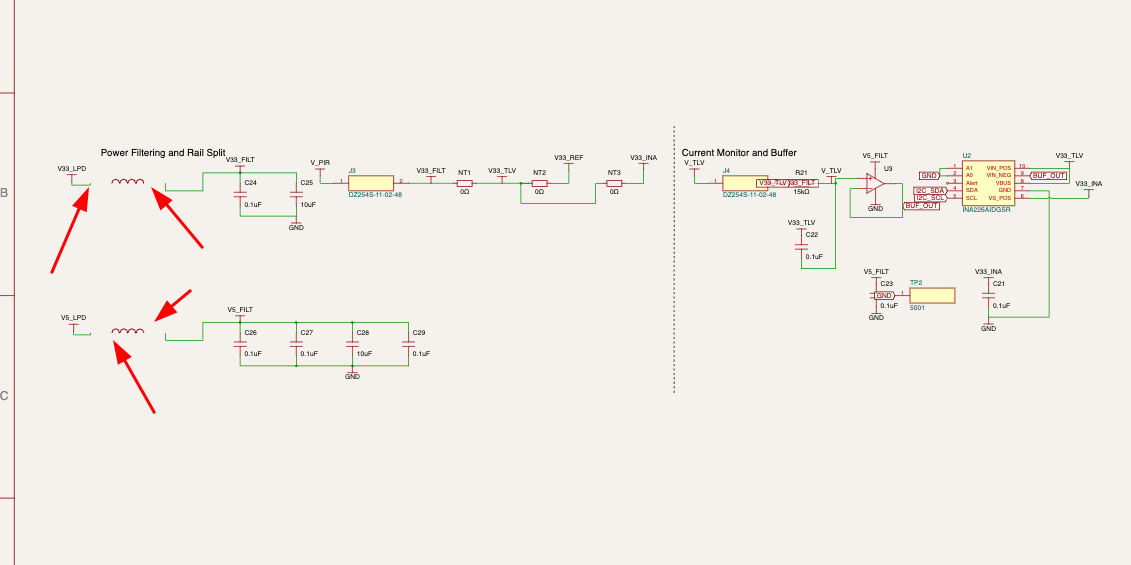

yea definitely inductor needs to be shrunk i think
Rishabh
Cause the stem of that inductor is missing
Seve
yea
Seve
inductor needs to match the kicad standard sizes we're doing for caps and resistors, and yea there's a stem issue too
Abse
<@809856037376491570> <@757706909351411845> can I get another review https://tscircuit.com/editor?package_id=bed74543-57fe-4324-8e84-63b1dadd5986&file_path=index.circuit.tsx
Abse
Ref

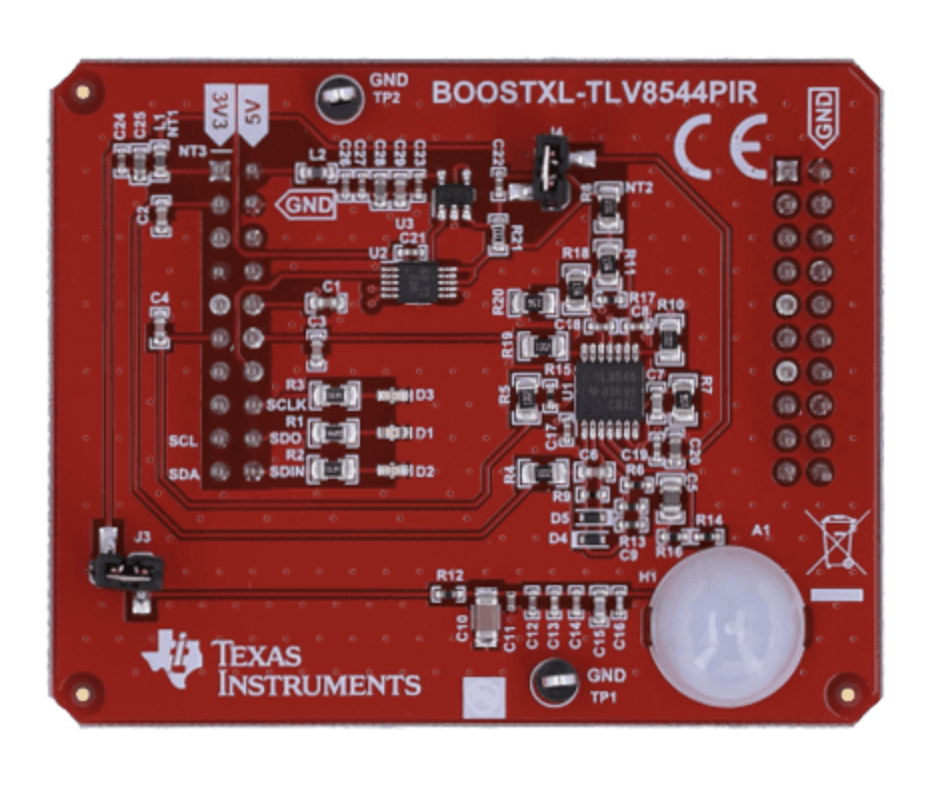

https://www.ti.com/tool/BOOSTXL-TLV8544PIR
Rishabh
LGTM!
Seve
Are the LEDs going to be visible under the board
Abse
wdym under the board ?
Abse

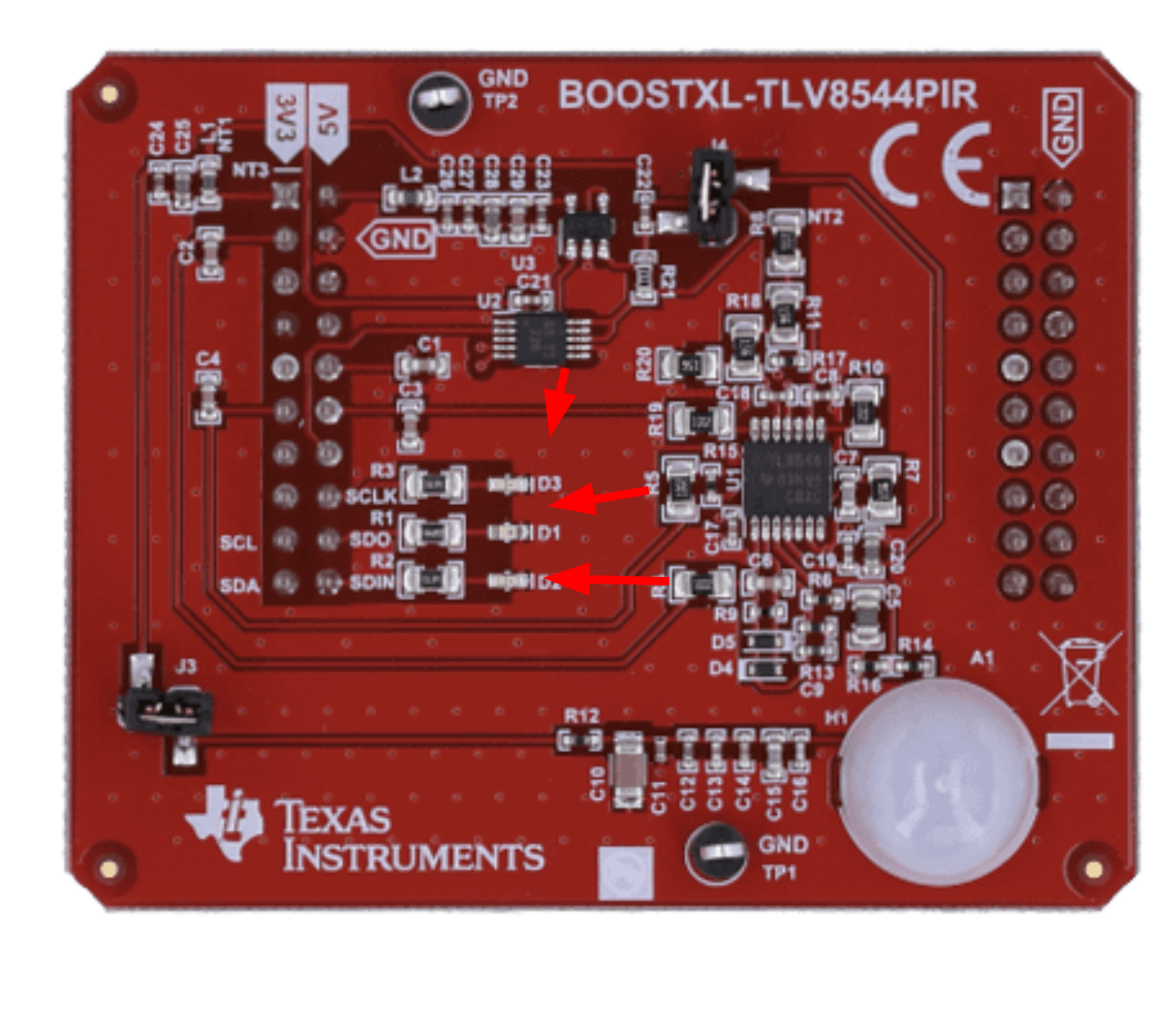

these are the leds right ?
Seve
Your design has females
Seve
Pointed above board
Seve
So id toy fix the headers maybe?
Abse
Ok
Abse
<@757706909351411845> <@809856037376491570>
Abse
https://github.com/tscircuit/ti-boosters/pull/4
Abse
https://tscircuit--boosters-v0-1-3-pr4-6ad978ce.tscircuit.app/#file=boostxl-tlv8544pir%2Findex.circuit.tsx
Abse
<@757706909351411845>
Abse
<@757706909351411845> <@809856037376491570> https://github.com/tscircuit/boosters/pull/11 , https://github.com/tscircuit/boosters/pull/12
Abse
on it
Abse
<@757706909351411845> https://github.com/tscircuit/boosters/pull/13
Abse
<@757706909351411845> https://github.com/tscircuit/boosters/pull/14
