Hey folks. I am still rather new to tscircuit so if I am asking this in the wrong place lmk where I should ask. I have finished laying out a circuit in tscircuit and it seems to be working well for everything I need so far, except for traces. The autorouter seems to be creating s
Hey folks. I am still rather new to tscircuit so if I am asking this in the wrong place lmk where I should ask.
I have finished laying out a circuit in tscircuit and it seems to be working well for everything I need so far, except for traces. The autorouter seems to be creating some odd traces here and there, which normally I would try to clean up by hand but I am running into some friction getting that to behave. Using the `pcbPath` attribute seems to work, but the way I am currently using it is too clunky. I have been typing in a number, watching the live pcb view update, seeing if that is right and continuing on. Coming from KiCad's trace editing tools makes me feel like there must be a better way, even if it is just exporting to kicad to do trace routing and then getting importing the trace coords back into tscircuit's `pcbPath` array. Can anyone shed some light on better ways to layout traces?
Iggystlev

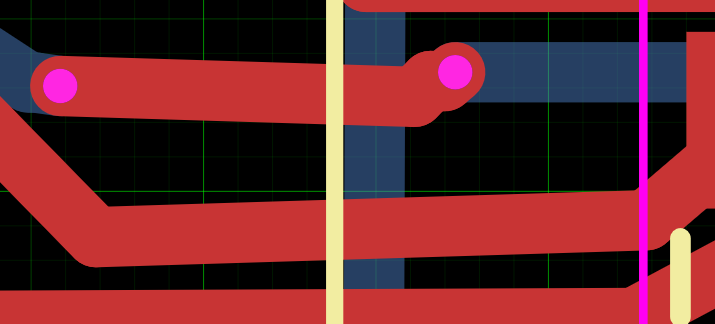

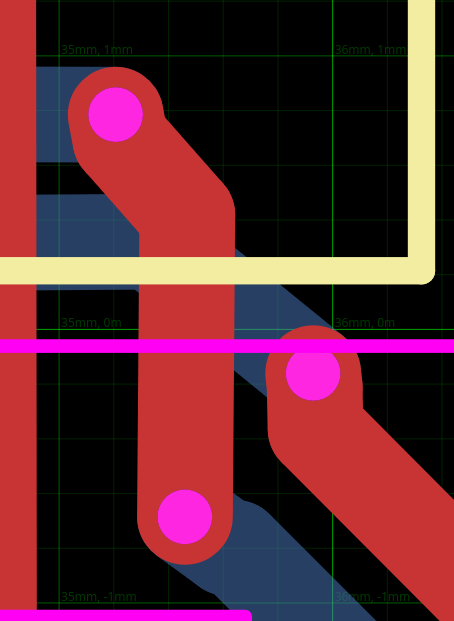

Here are some examples of the odd traces i am seeing
for working around it, yes pcbPath is the only option we currently offer for fixing it- most of the other options would cause too much data to be committed
Seve
<trace pcbPath />
Seve
if you are at the stage where you're ordering, a lot of people will export out into KiCad for small final adjustments they aren't able to make with pcbPath
Seve
we have very good reasons for not manually routing- having that data inside the TSX "makes the ai dumber" (it's super token inefficient). You may want to consider using calc strings as well

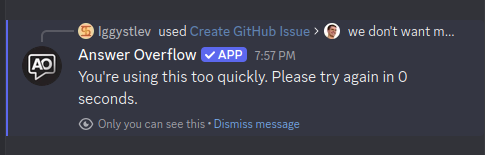

I tried making an issue in-app but it returned an error said I was trying too many times after trying once, so I assumed it was not setup. Thank you for the other links.
Oh interesting, maybe use github directly? Or that doc allows you to create a link to the autorouting problem, you could share it here
Iggystlev
the tscircuit-autorouter repo seems to be for the newer "capacity-autorouter". I dont think that is the one I am using, I am using the default one. I tried setting that one up the other day but ran into a package issue. Unfortunately I dont have a screenshot of that error, I want to say it was something to do with object-hash subpackage?. Ok I'll try to organize these issues and see what I can get reproductions of. I appreciate the effort on your end.
Seve
Ofc we want everything to work by default!!! The capacity autorouter is the same as the tscircuit autorouter/default autorouter
Iggystlev
I thought the default was `sequential-trace`. I think I had some llm output that indicated some other issues I was running into with routing were typical of sequential-trace, maybe it hallucinated.
Seve
Yea we deprecated sequential trace recently because it was almost never able to successfully make a board
Iggystlev
ahh, that makes sense.
I am using tscircuit@0.0.2229 right now, would that mean I am definitely using the capacity-autorouter?
Seve
Yep!
Iggystlev
Perfect, then ill make that ticket about this routing issue next chance I get at my computer. Thanks again!
Seve
Thank you! We are always looking for bugs!!!
