gokul - could you please verify whether this im...

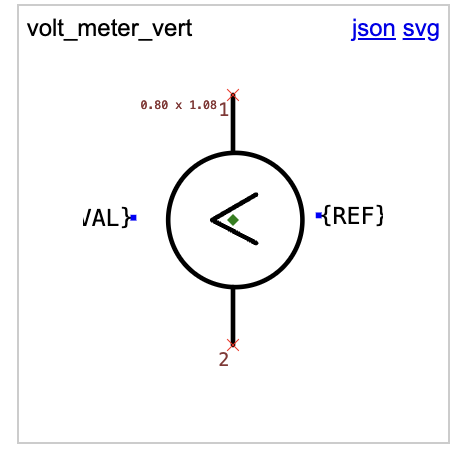

could you please verify whether this implementation matches the expected design? I'm unsure about the vertical symbol's orientation .. Let me know if any changes are needed !!

Started by gokulJul 23, 20267 messages

Discussion

Last active last month · plain text
gokuloriginal post
could you please verify whether this implementation matches the expected design? I'm unsure about the vertical symbol's orientation .. Let me know if any changes are needed !!
mohan-bee
cc <@1067854999889137715>
techmannih
I don't think we need to improve it for now
Rishabh
Ref and Val on the same side towards right
gokul
You mean both REF and VAL should be placed on the right side of the symbol??
techmannih
Yes you can take a look box resistor symbol as reference
gokul
Got it, thanks! I'll follow the box resistor symbol and update it!!
