astrimid - is there a way to flip a mosfet, so ...

Like “reflect” or “mirrorX” the symbol right? We dont have this but can add it quickly

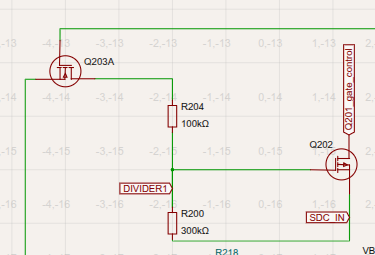

Yeah, I'm trying to model this simple divider powering the gate:

Can't this be done through schrotation now?

that rotates all the ports, that's distinct from mirroring

rather than introduce symbol flipping, we can introduce clear props that indicate where the ports should appear rotation and mirror'ing is always a big problems for AI and humans, because it assumes that the normal orientation is obvious

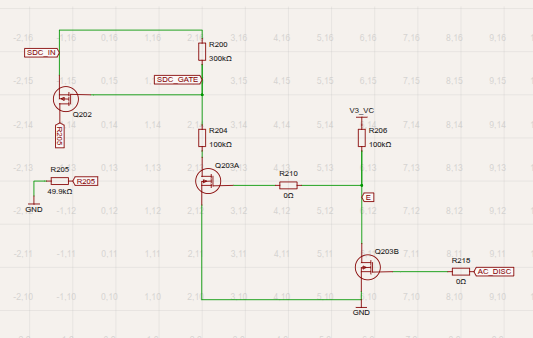

I got this so far: But the reference has this whole block rotated 180 degrees

that's looking good! We have stuff entering the spec to fix the mosfet issue now. (https://github.com/tscircuit/props/pull/726 SPEC ONLY, implementation to follow)

meanwhile, is here a way to rotate a schematic group?

are schX/schY coordinates global?

no unfortunately, we also may not support that because it becomes very confusing when rotations are relative and "up" no longer means "up" etc. (this is why we also tend to discourage using <group />)

they are relative to a containing group/subcircuit

if you want to have a bunch of components grouped together but not in a group, you can use `<>` which is called a "Fragment" and does not impose any constraints

e.g. ``` export const MyElements = () => ( <> <resistor /> <capacitor /> </> ) ```

maybe there's a space for a visual editor that reassigns schX/schY around. but mosfets themselves don't support rotation at all as I understand, only 90 degrees and 0 degress. -90, 180 don't appear to have any effect

yea we'll get mosfets sorted out soon- it is because they are an old symbol

is there something newer?

no you're just finding legitimate bugs- i don't know why nobody has mentioned them

users don't always join discord i suppose

yeah, I only joined cause AI keeps gaslighting me, saying I'm doing something wrong 😩

what ai do you use out of curiosity? Yea one thing we've learned is that AI is generally better when you give it PNGs rather than SVGs for analysis. If you haven't tried it yet, the tscircuit command line tools can be good for working with ai

`tsci dev` etc.

ai will do `tsci snapshot` to take pictures of the circuit iirc

claude, gemini, deepseek, google AI mode. Then can produce mostly working spice model, but for tscircuit they keep hallucinating non-existent or introducing deprecated components and attributes

do you use it directly in the web? They may be failing to install the skill 🤔

hm, there's a skill? I've mostly pasting the npm types reference and go from there

the agentic way just burns dollars with unsatisfactory results

maybe I should try Fable, but if it's impossible to implement without modifying tscircuit, I doubt it'll produce anything useful

yes this is our skill: https://github.com/tscircuit/skill

My understandins is my use case it too niche. I've mostly seen tscircuit advertising in relation to PCB autotracing, not schematic. Maybe I should just give up on visualization and just use spice model and hand-picked set of probes

we are focusing more on schematic because we have a large partner (TI) that is asking us to make sure the schematics look good

ooh, then trying to reproduce reference schematic even with manually positioned components might be exactly what you need

yea for sure

feel free to link me to any super complex schematics that could be a good reference

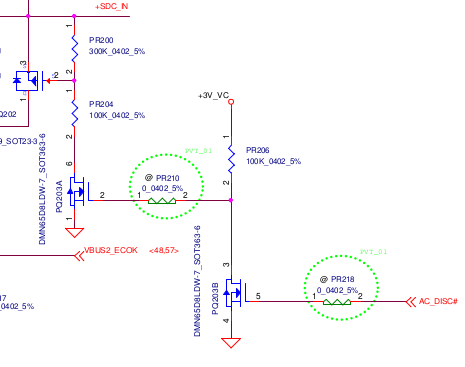

the reference snapshots I've uploaded is a part of power delivery network of Dell XPS 15 motherboard, which has dual barell jack / usb-c sources, EC controller, protecting and buck-boost mosfets, charge controller, battery powering B+. with lots of control signals, filters, diods, small voltage regulator ICs and protection circuits even before the B+ distribution. if tscircuit can model that, I think it could model anything

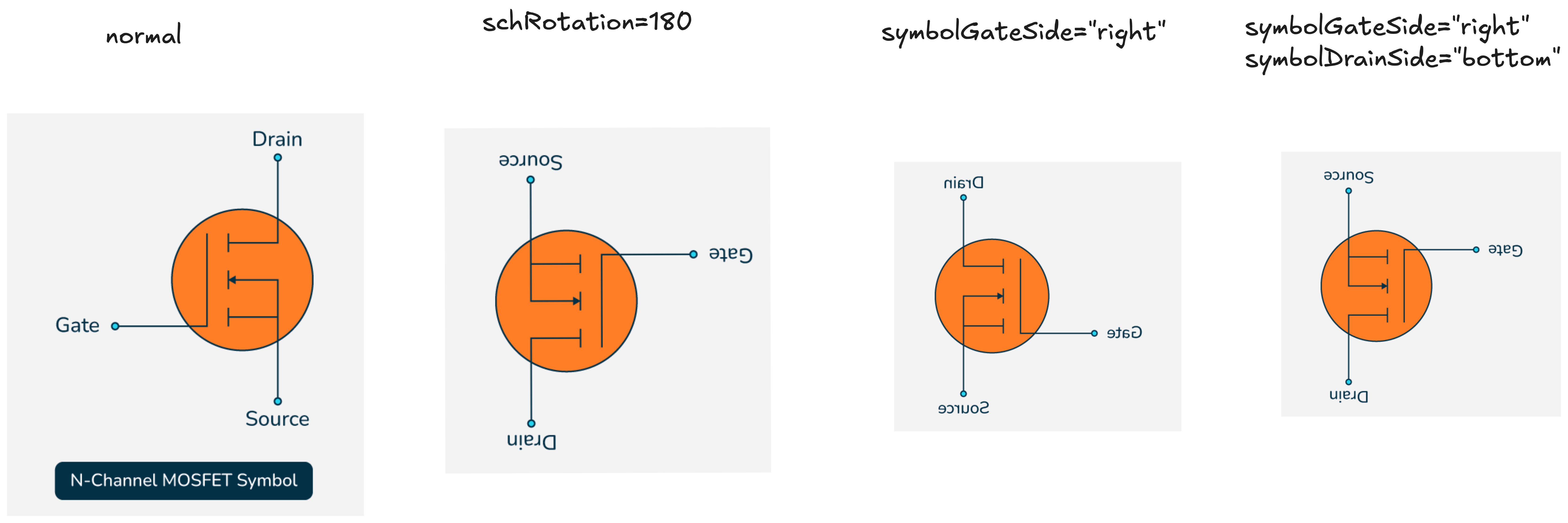

FYI, the "symbol*Side" property of MOSFET is live, but doesn't appear to have any effect

it is live in the types/spec but i don't think the implementation is live

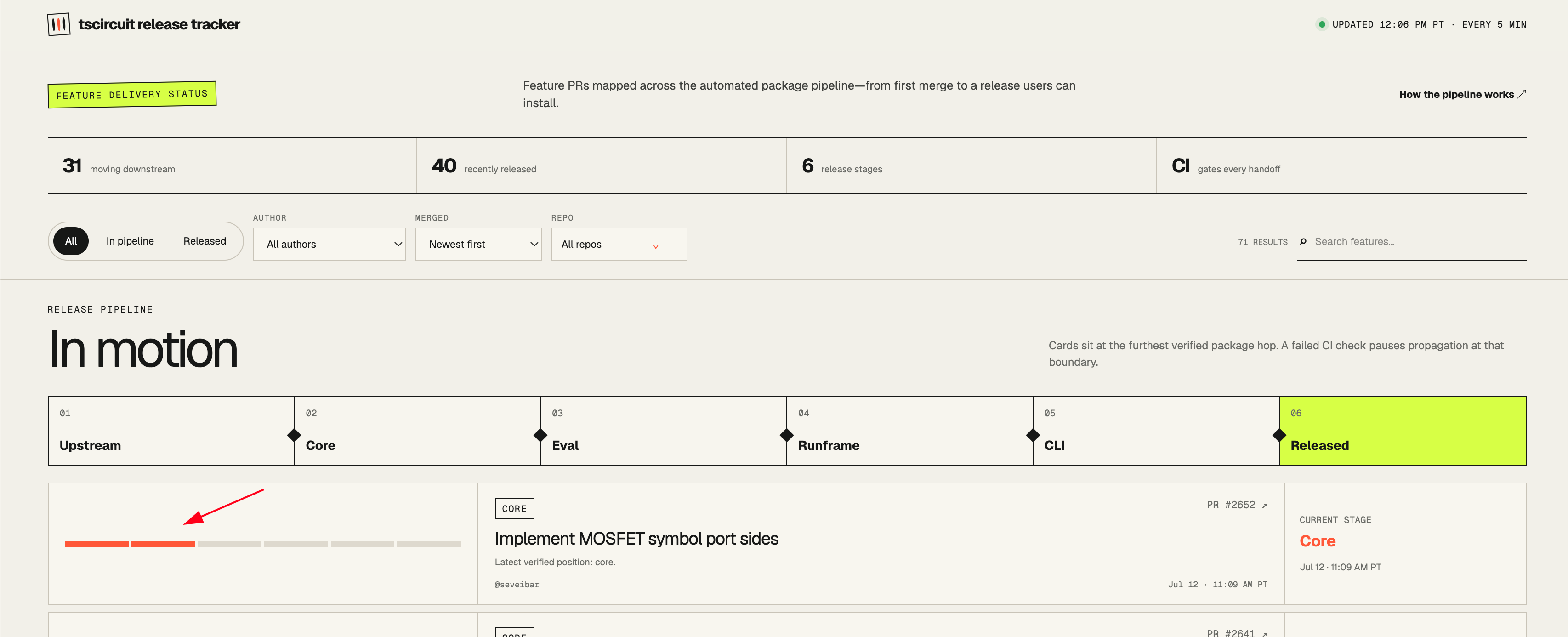

https://release-tracker.tscircuit.com/

it takes a hour or so to go through the pipeline for release

basically every repo is running tests

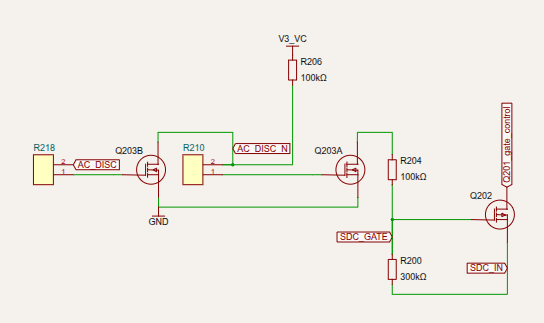

Here's the best I can do without rotating mosfets. SDC_IN should really be at the top. But if it's at the top, then Q202 has intersecting paths

The pipeline appears to be failing: https://github.com/tscircuit/eval/pull/3206

thanks will checkout that pipeline issue, can you send me the code for that circuit- we will file a reproduction and fix it today

Here's the file I'm working on. It's still unfinished. There should be voltage sources for simulation/toggling state, AC_DISC and ECOK binary logic signals controlled by those voltage source toggles, main diode to auto-on the main MOSFET and a whole parallel USB-C path with exactly the same kill/enable mosfet circuit with OR gate to switch between barrel source and USB-C power delivery, not even talking about comparators and chips and battery charging/discharging. It would probably be unfeasible to finish without LLM generation, but I'd need to fully understand tscicuit props to fix the draft AI produced and catch any bugs. I don't even know why I'm doing it anymore.😅

cheers thanks, we will try to get ahead of bugs you may encounter- e.g. <@778624824875941908> i THINK he's going to need to be able to have a switch turn on at a certain point, i'm thinking something like this could be good... ``` <analogsimulation> <simulate.pressswitch at="10ms" switch="SW1" /> </analogsimulation> ``` Also we need support for an OR gate and battery- or at least a doc with some example SPICE so he can implement them himself via `<chip spiceModel={...} />` In the future we'll support event-based state machines, that would make it so you could just do `<simulationevent eventName="press_switch" target="SW1" at="10ms" />`, in some ways this API is a lot more extensible-

shibo may know if there's already a way to do this (I think there is)

well, the power button switch is powered by CMOS battery and the signal goes to EC chip which is operated by firmware, so highly unlikely it would be a part of analogue simulation.

gotcha- yea i guess i'm trying to think of all the different simulations you're trying to run and trying to get ahead of it. Some people would prefer to put multiple simulations within the same board, some people would create simulations separately (as different components), we're still figuring out how people will practically use simulations

appreciate the feedback tho, just let us know when you run into things because we will solve them quickly

To give you a full context, I'm trying to simulate the main power rail protection logic, it was surprisingly easy to vibe code simulation from scratch: https://spice-circuit-simulation.vercel.app/ but it's all hardcoded, so I'm looking for some schematic format to visualize power paths and/or do simulations so it could be file managed/authored/extended. So far I have these candidates: tscircuit jsx, circuit json or some DSL/enhanced ngspice (I'm also looking at Rust thevenin cirq format/package). As I understand, power delivery schematics are quite similar across motherboards, all the IP is mainly in firmware, chips and physical layout.

Thats super helpful thanks

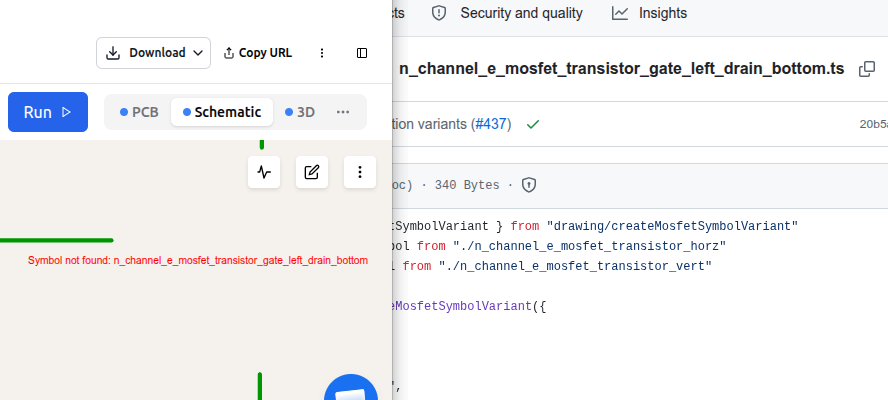

I've checked again, the routing or wires works, but the symbol itself is not displayed in neither of combinations:

The name matches, the symbols PR is in released state. The props PR was available immediately. Is there anything else not released?

This is due to a bug in tscircuit.com where it is using an old symbols package
