# support·Active

Vivek Vijayan - Found a strange rendering issue...

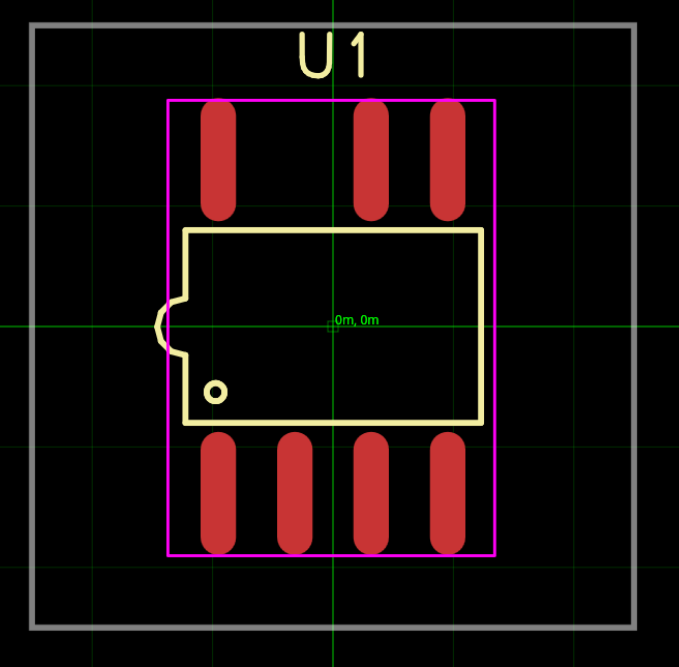

Found a strange rendering issue for UCC28881 component from JLCPCB library. Pin 7 is not present for the IC. But Pin 8 is present. footprint is correct, but schematic symbol fail to capture the detail.

Started by Vivek VijayanJul 8, 20265 messages

Discussion

Last active 5 days ago · plain text
Vivek Vijayanoriginal post

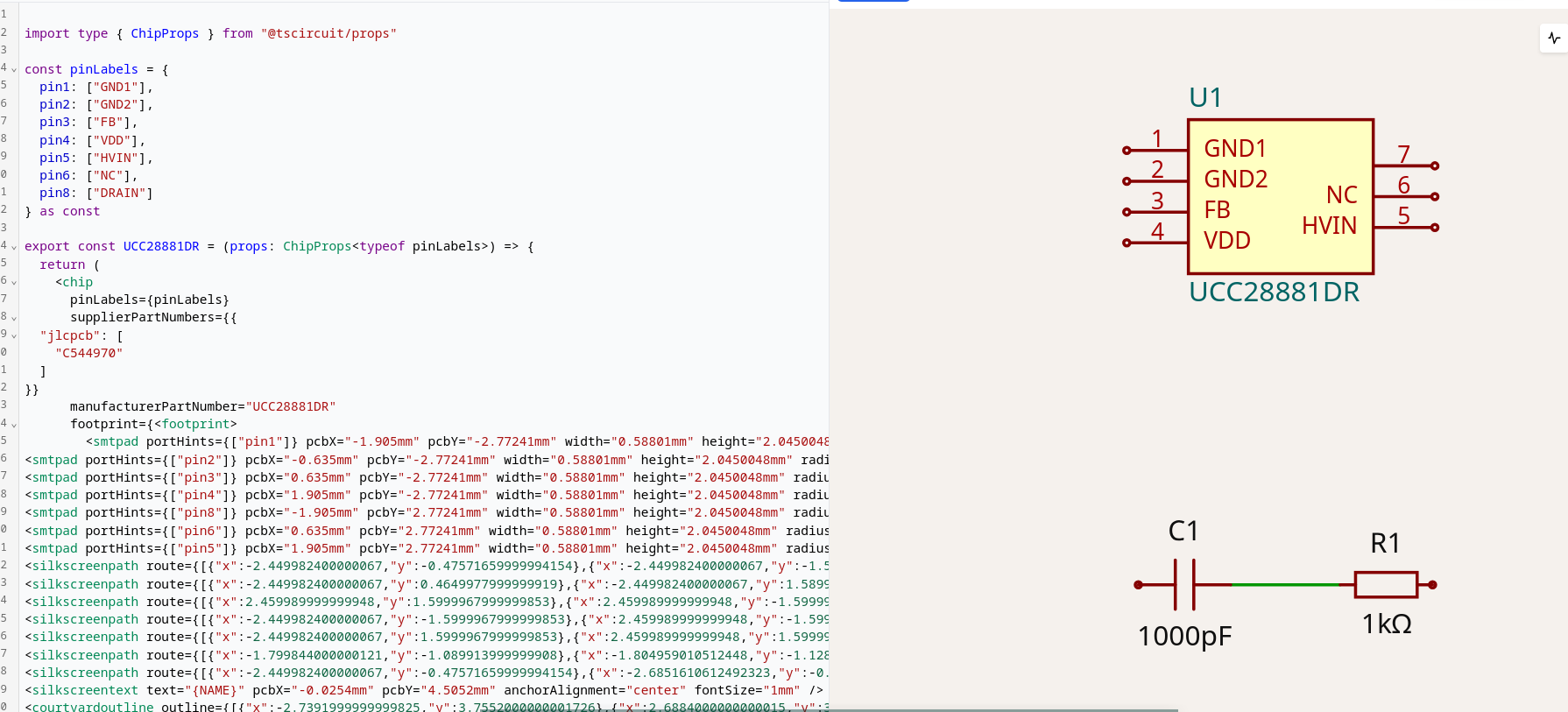

Found a strange rendering issue for UCC28881 component from JLCPCB library. Pin 7 is not present for the IC. But Pin 8 is present. footprint is correct, but schematic symbol fail to capture the detail.
Vivek Vijayan

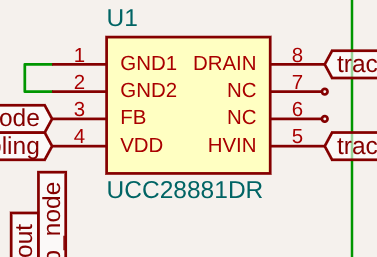

I did simple workaround to use the component in my circuit: Pin 6 is NC, overlapped Pin 7 footprint above Pin 6 in component tsx code. Now schematic is rendered properly. I think, we should add proper handling for special cases like this.
Rishabh
yeah, it's a bug in the schematic chip label
anil
<@809856037376491570>, could you let me know where this fix should be made? Is it in `easyeda-convertor`? I can try to fix it.
Rishabh
It was fixed, forgot to update it here
