shibooriginal post

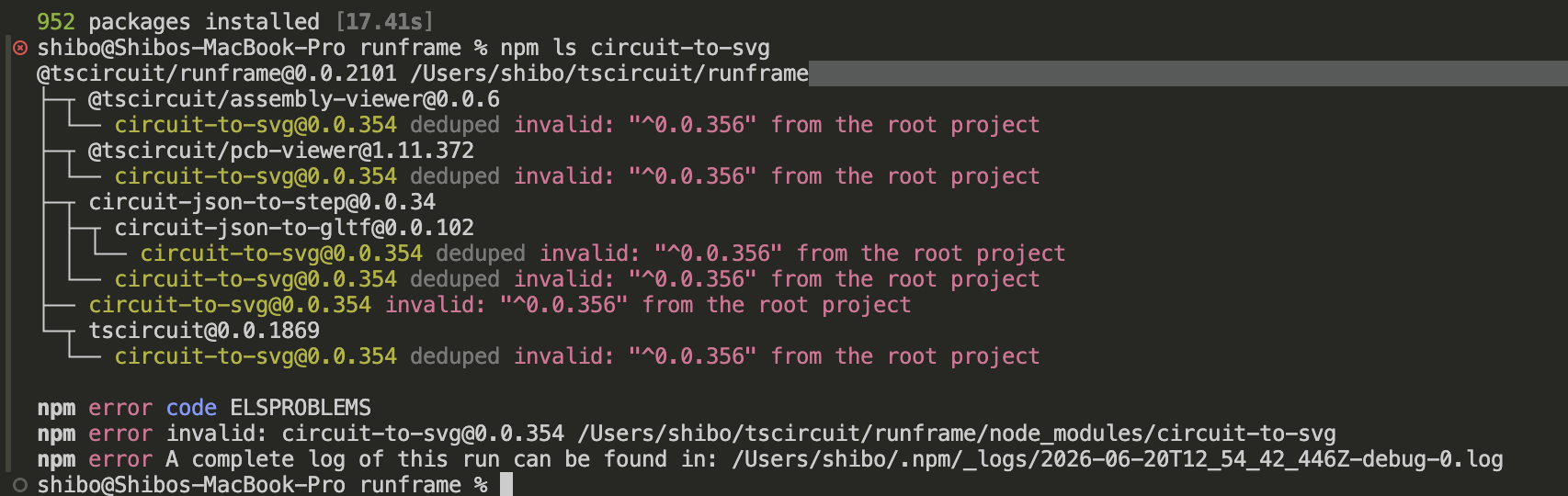

<@757706909351411845> <@809856037376491570> I was able to run the simulation in the cli in the ti repo succressfully, however in the dev server runframe is bundling an old version of circuit-to-svg, do you have any idea about this issue? I tried to update circuit-to-svg in runframe but it's still using an old version
Rishabh
You mean the schematic-viewer is using the old version?
shibo
the schematic-viewer will use whatever version is in runframe. runframe is bundling an old version of circuit-to-svg
shibo
looks like there is a version conflict
shibo
<@809856037376491570> pcb-viewer is a culprit: https://github.com/tscircuit/pcb-viewer/pull/905
shibo

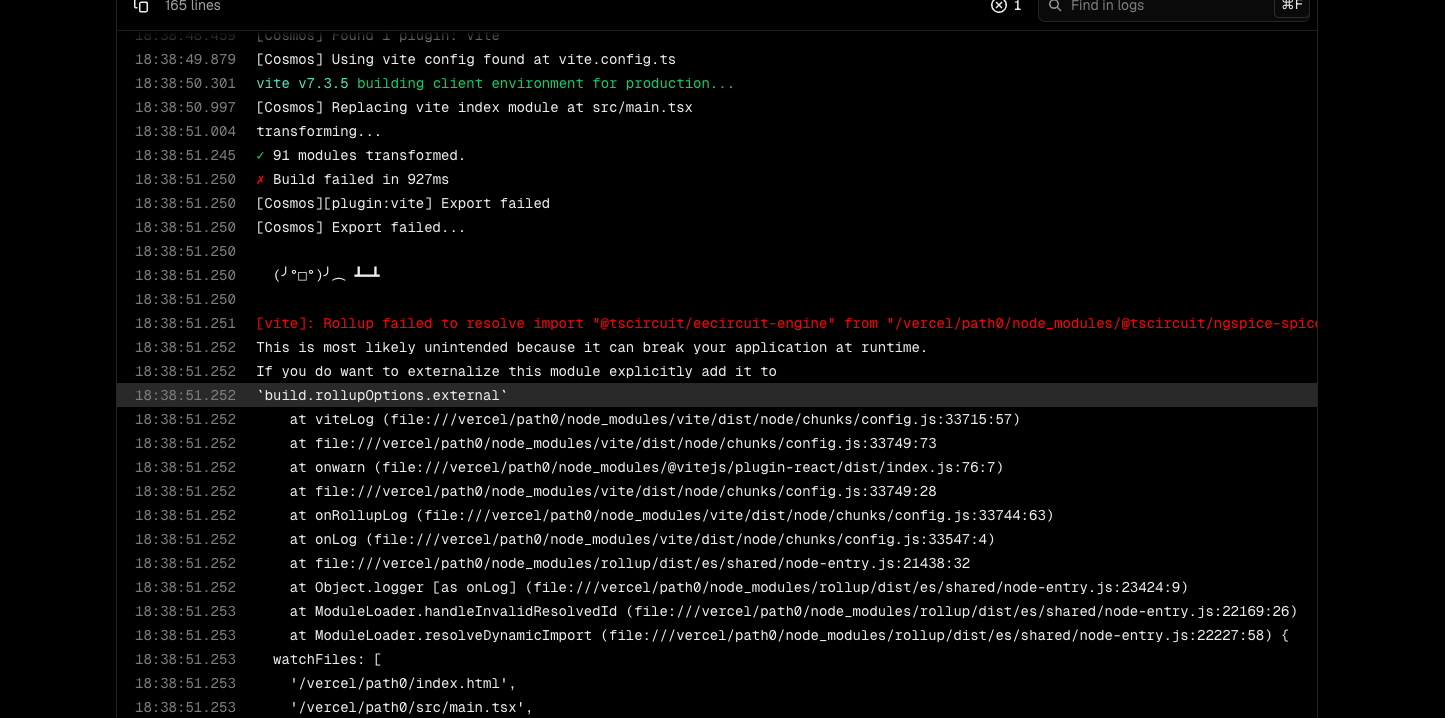

<@809856037376491570> can you please see why the deployment if failing: https://github.com/tscircuit/runframe/pull/3738
Rishabh
Shared an attachment
shibo
@here https://github.com/tscircuit/ngspice-spice-engine/pull/22
shibo
<@809856037376491570>
shibo

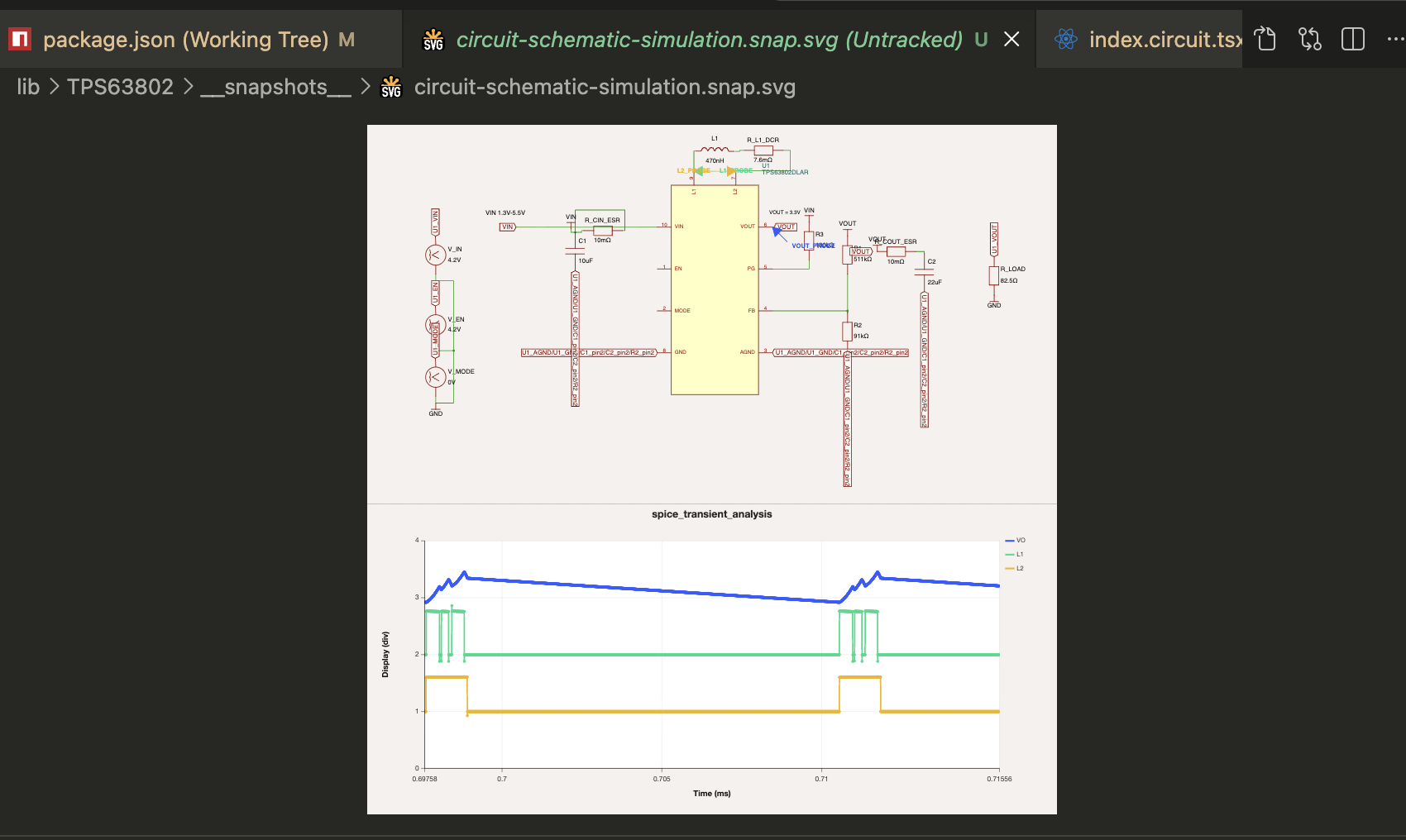

finally worked in the dev server, the graph looks squashed though
Seve
Niceee
Seve

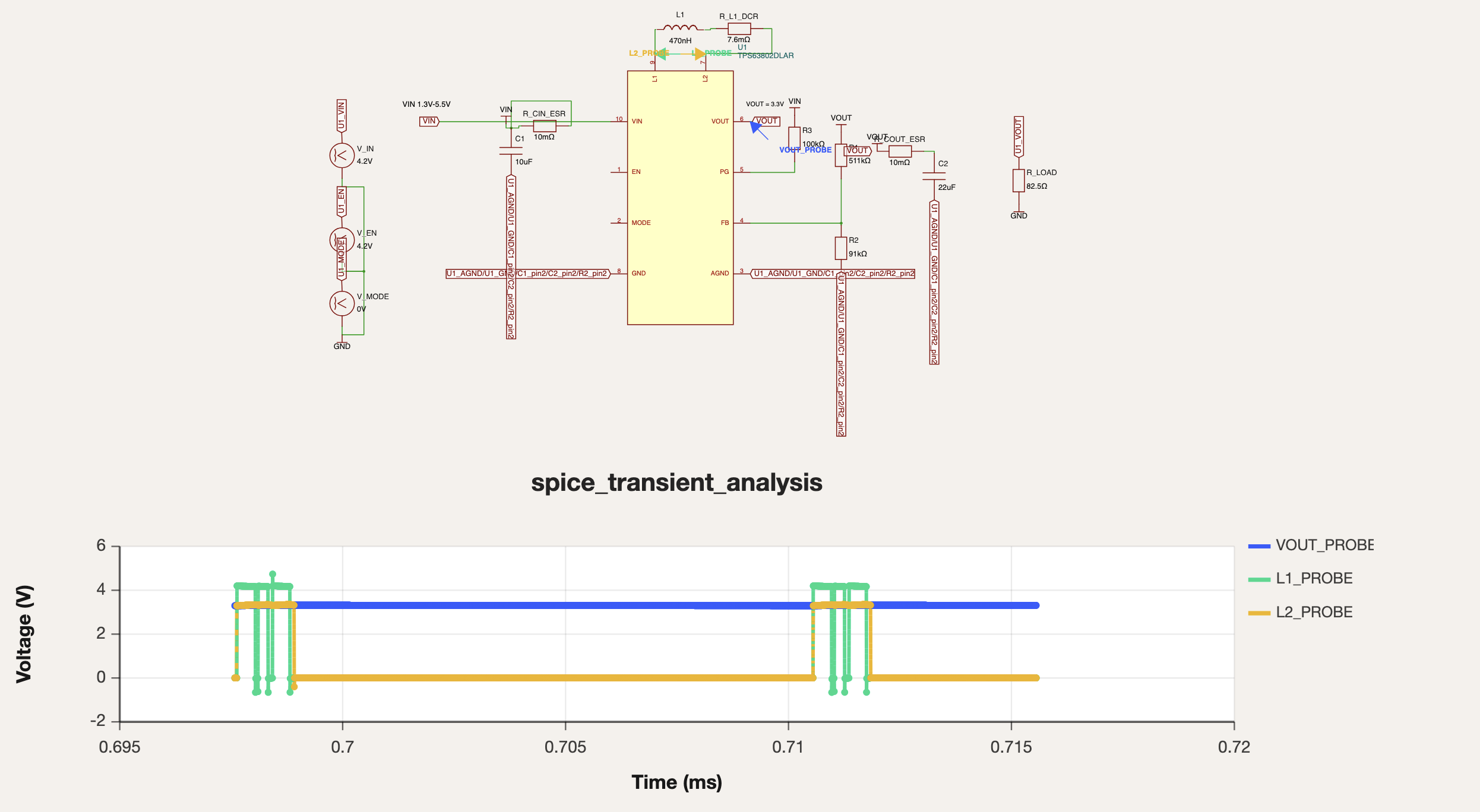

<@436098556974333952> <@1079361271687807026> i would love to show this to our partners but concerned about the schematic- doesnt look good- can we fix? <@778624824875941908> you should use displayName for the traces and try to get it a bit better
shibo

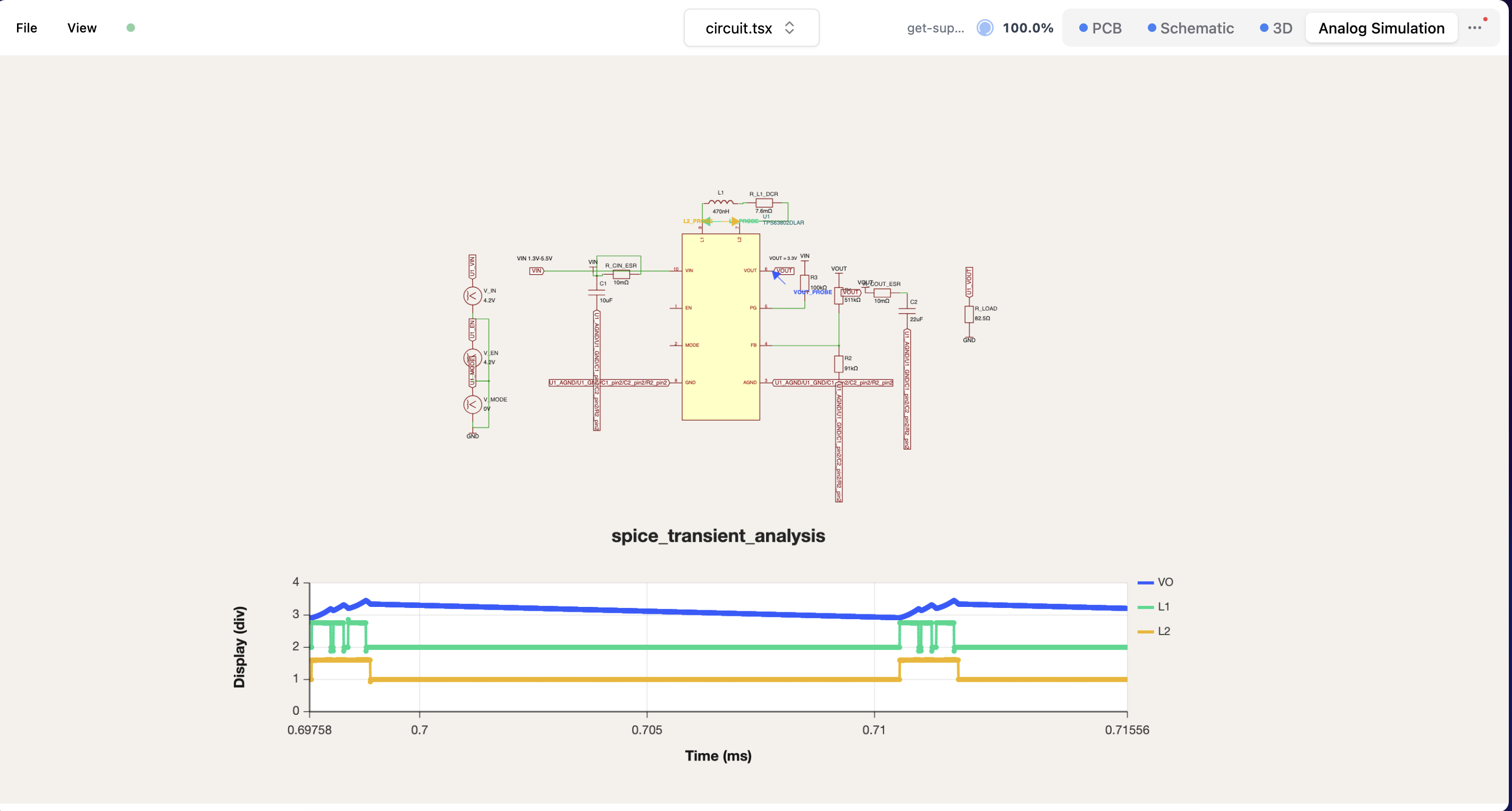

still missing the current graph, and the I want to investigate why it's squashed, I'll push the circuit so someone else can check the schematic
shibo
https://github.com/tscircuit/schematic-viewer/pull/229
shibo
<@757706909351411845> https://github.com/tscircuit/circuit-to-svg/pull/580 https://github.com/tscircuit/props/pull/699
shibo
<@757706909351411845> https://github.com/tscircuit/circuit-to-svg/pull/580
shibo
<@757706909351411845> new spec: https://github.com/tscircuit/circuit-json/pull/614
Mustafa7
Is this manually placed?
shibo
yeah like all other circuits in the ti library repo
Mustafa7
We are improving the auto-placed schematic. You can use the `schMaxTraceDistance` that will get rid of fallback netlabels. Regardless can you share me the circuit
