mention please take a look I’m adding <ammeter / in core and found issue, schematic symbols has dc ammeter horz correctly defined with the A inside the circle, but when core renders the schematic SVG through circuit to svg, that literal A text gets dropped. The SVG ends up showin

Started by AnasJun 18, 202617 messages

Discussion

Last active 26 days ago · plain text
Anasoriginal post

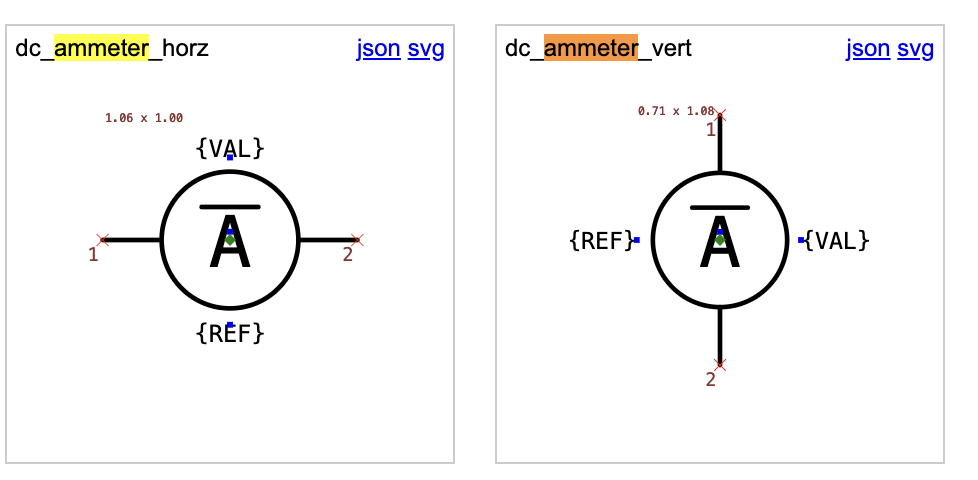

<@452450065941004289> please take a look I’m adding `<ammeter /> ` in core and found issue, schematic-symbols has dc_ammeter_horz correctly defined with the A inside the circle, but when core renders the schematic SVG through circuit-to-svg, that literal A text gets dropped. The SVG ends up showing the circle and meter line, but the center A is blank.
Screenshot_2026-06-18_at_8.25.01_AM.pngScreenshot_2026-06-18_at_8.25.01_AM.pngScreenshot_2026-06-18_at_9.51.26_AM.pngScreenshot_2026-06-18_at_9.51.26_AM.png
Anas

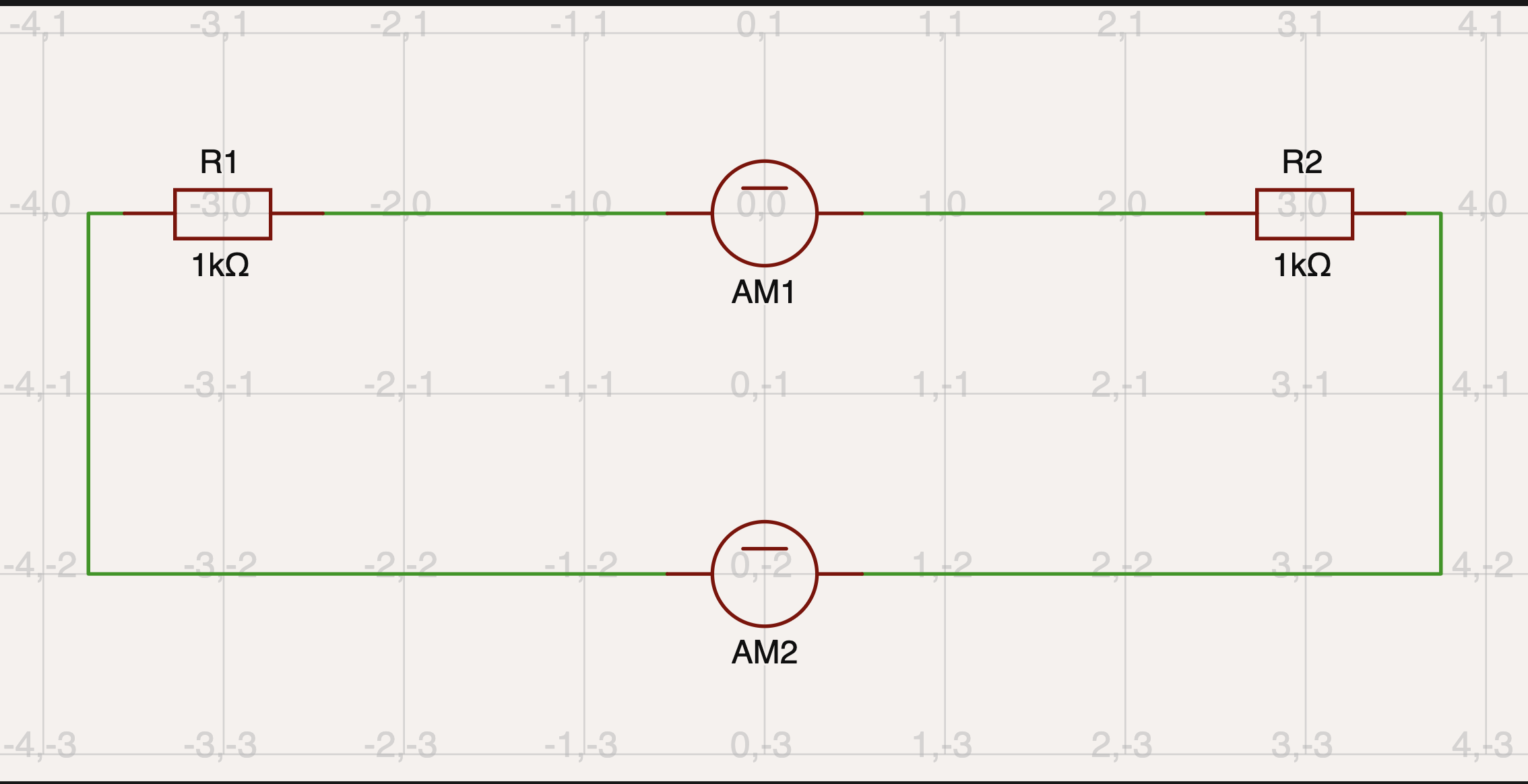

Looks like circuit-to-svg only handles {REF} and {VAL} text inside schematic symbols, and any other literal symbol text becomes empty. I’ll attach screenshots showing the symbol site vs the rendered core output.
Anas
or anyone
Anas
cc:<@1238122660345548882> <@1067854999889137715>
shibo
we need an AC ammeter too
shibo
TI circuits are analog
Anas
forgot the AC for now, just fix the issue that I mentioned above
mohan-bee
doing the fix.
Anas
maybe u can write the "A" letter with svg path same as the voltameter do
mohan-bee
https://github.com/tscircuit/circuit-to-svg/pull/577 <@756504518417711104>
mohan-bee

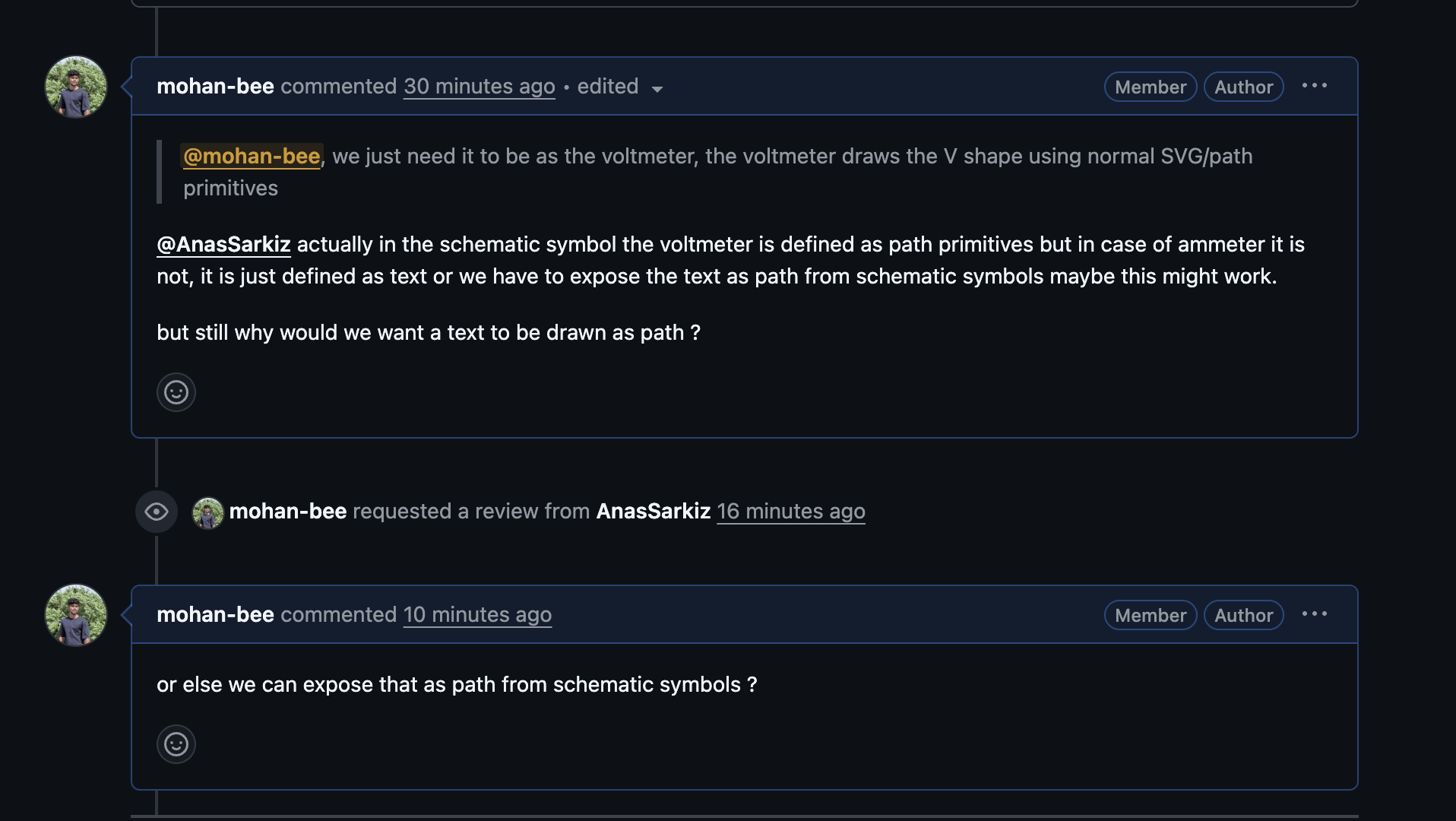

<@756504518417711104> also i tried to convert the text into path in the schematic symbols , you can take a look.
Anas
sg just lmme know if u fixed it
Anas
or mention me to review
mohan-bee

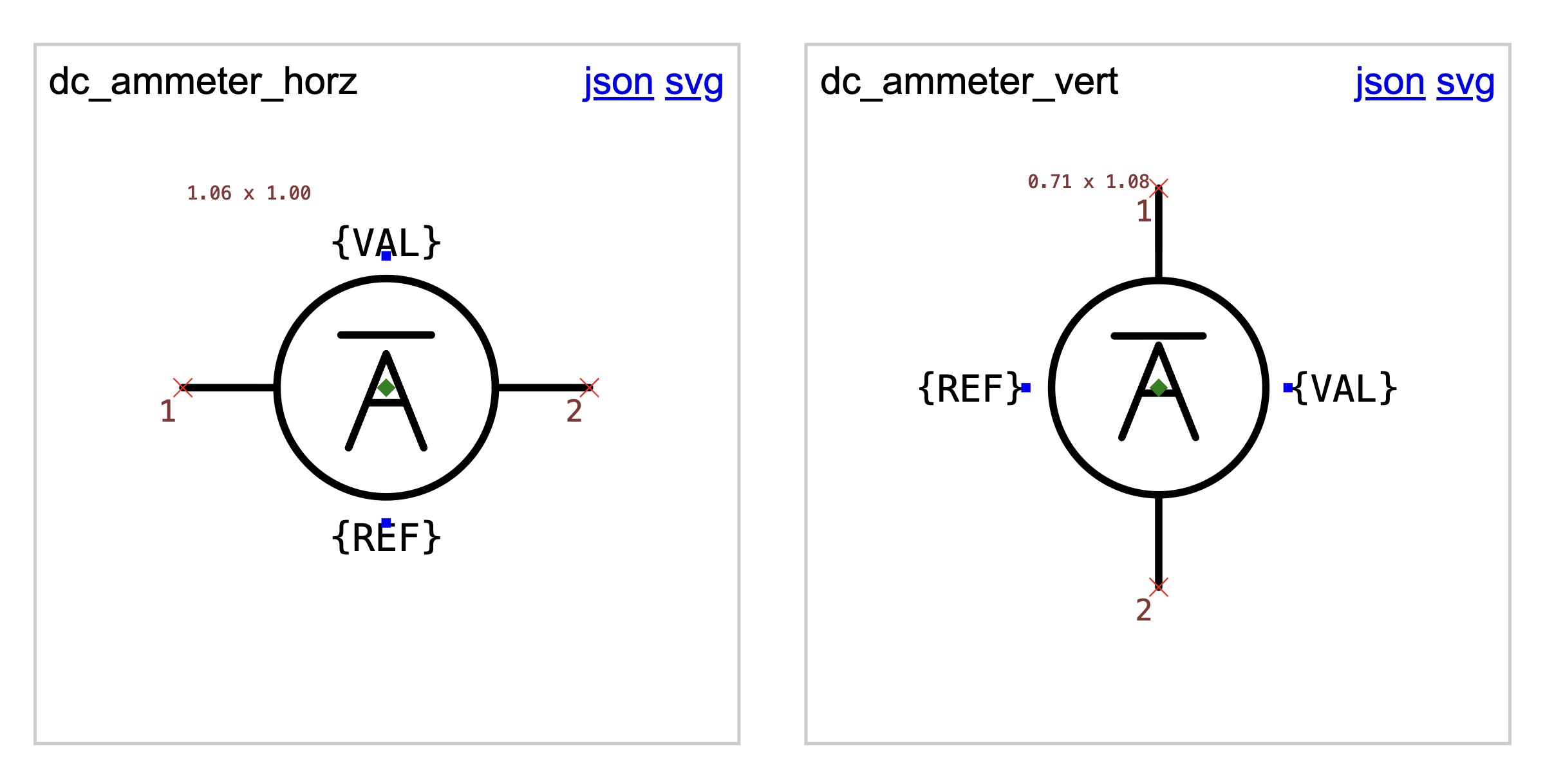

https://github.com/tscircuit/schematic-symbols/pull/428 <@756504518417711104>
! Rushabh | Linux Shill
was afk
mohan-bee
<@756504518417711104> fixed in schematic symbols do we have to update the package anywhere apart from core ??
Anas
perfect, updated
