is there a way to move the label away

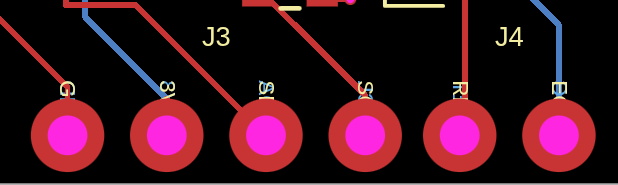

is there a way to move the label away form the hoels

Started by ! Rushabh | Linux ShillJun 14, 20268 messages

Discussion

Last active last month · plain text
! Rushabh | Linux Shilloriginal post
is there a way to move the label away form the hoels
Seve
Is this footprinter? pcbSx can be used, but footprinter should never emit stuff like this
! Rushabh | Linux Shill
https://github.com/tscircuit/sparkfun-boards/pull/295
! Rushabh | Linux Shill
```ts <jumper name="J3" schWidth={0.7} schSectionName="connectors" schX={-1.5} schY={-4.2} schDirection="left" schPinArrangement={{ rightSide: { direction: "top-to-bottom", pins: ["SCL", "SDA", "3V3", "GND"], }, }} connections={{ pin4: sel.net().SCL, pin3: sel.net().SDA, pin2: sel.net().V3_3, pin1: sel.net().GND, }} pinLabels={qwiicHeaderLabels} footprint="pinrow4_id1.016_od1.88_nosquareplating_pinlabeltextalignright_pinlabelorthogonal_doublesidedpinlabel_pinlabelverticallyinverted" pcbX={-2} pcbY={-11.43} /> <jumper name="J4" pinCount={2} schWidth={0.7} schSectionName="connectors" schX={2} schY={-4.2} schDirection="left" schPinArrangement={{ rightSide: { direction: "top-to-bottom", pins: ["EOC", "RESET"], }, }} connections={{ pin2: sel.net().EOC, pin1: sel.net().RESET, }} pinLabels={eocResetHeaderLabels} footprint="pinrow2_id1.016_od1.88_nosquareplating_pinlabeltextalignright_pinlabelorthogonal_doublesidedpinlabel_pinlabelverticallyinverted" pcbX={5.5} pcbY={-11.43} /> ```
Seve
Yea that is a footprinter bug
! Rushabh | Linux Shill
so the text should be above the hole
Seve
The text alignment may be wrong hard to say
techmannih
yea seems like a text alignment bug, i think the text position is constant which should be depend on the pinrows size. can you please it
